Crazing in Concrete: Spider Cracks — Causes, Treatment & Prevention Guide

What Is Crazing?

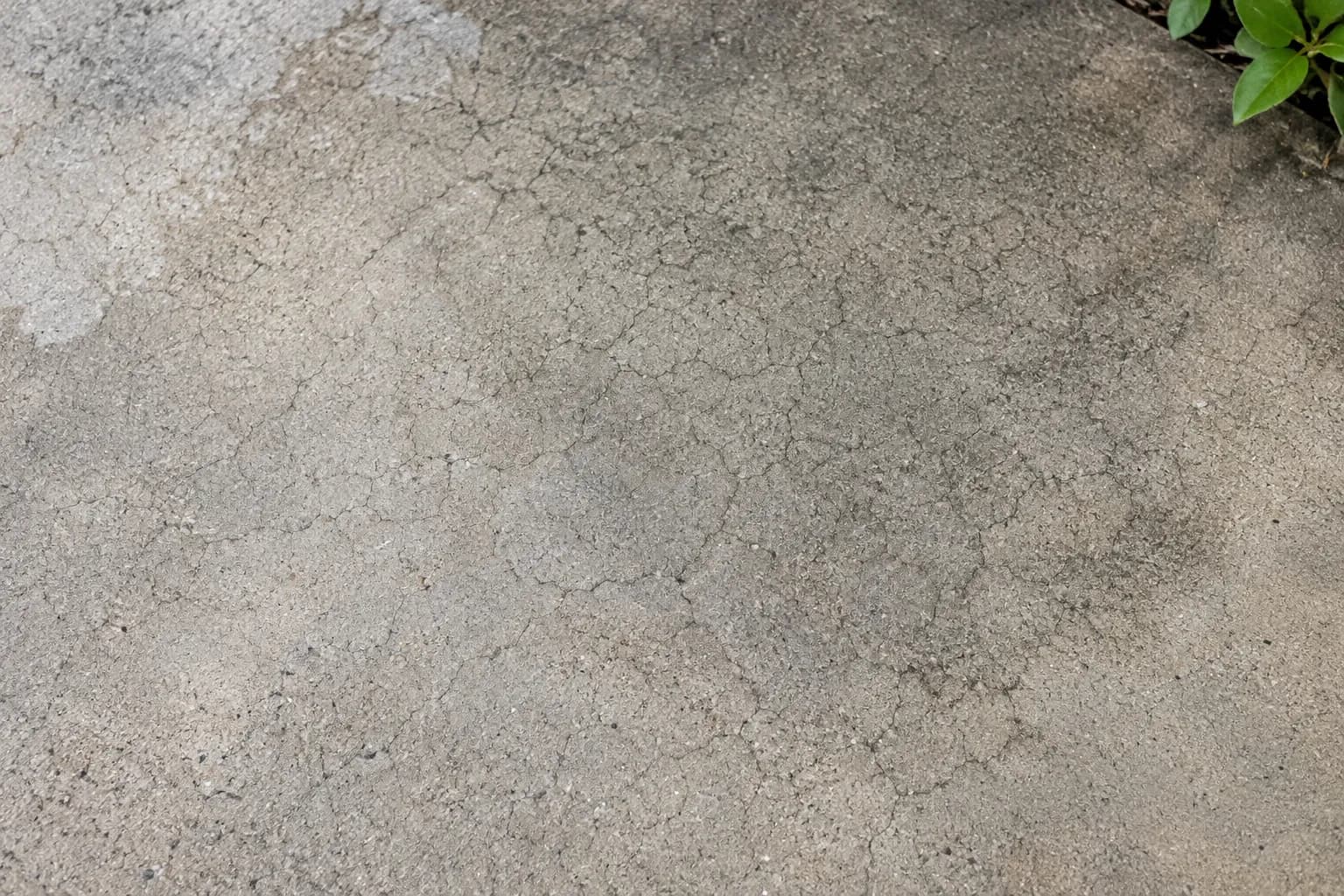

Crazing is a pattern of fine, shallow, interconnected cracks on the surface of hardened concrete. The pattern resembles a dried mud flat, a spider web, or a road map — which is why crazing is also commonly called spider cracking, map cracking, or pattern cracking. The individual cracks are hairline width (typically 0.002 to 0.005 inches, or 0.05 to 0.13 mm — thinner than a human hair), and they form irregular hexagonal or polygonal cells ranging from 1/2 inch to 3 inches across.

The defining characteristic of crazing is its extreme shallowness. Crazing cracks are limited to the top 1/16 to 1/8 inch of the concrete surface — the thin, paste-rich layer created by finishing operations. They do not penetrate into the structural body of the concrete below. This is what makes crazing fundamentally different from all other concrete crack types: shrinkage cracks extend deeper into the slab, plastic shrinkage cracks penetrate 1–3 inches, structural cracks go through the full section, and settlement cracks reflect soil movement beneath the slab. Crazing is exclusively a surface phenomenon.

The Mechanism

Crazing occurs because the surface layer of the concrete has different properties than the concrete beneath it. During finishing operations — floating, troweling, edging — a thin layer of cement paste (cement + water, with little or no aggregate) is worked to the surface. This paste-rich layer is weaker, has a higher water-to-cement ratio, and shrinks more than the concrete matrix below it.

When this surface layer loses moisture and shrinks, it is restrained by the underlying concrete (which shrinks less because it contains aggregate and has a lower paste content). The restraint creates tensile stress in the surface layer. Because the layer is so thin, even small amounts of differential shrinkage generate stress that exceeds its tensile capacity. The result is a dense network of fine cracks that relieve the stress — the crazing pattern.

The process is analogous to the formation of mud cracks in a dried puddle. The thin surface layer of dried mud (like the paste-rich surface of concrete) shrinks and cracks into polygonal cells while the moist soil beneath it (like the aggregate-rich concrete body) remains intact.

Aliases and Common Names

Crazing goes by many names, which can cause confusion:

• Spider cracks — the most common homeowner term, referencing the web-like pattern
• Map cracking — used in engineering literature, referencing the resemblance to a road map
• Pattern cracking — a general term, sometimes used interchangeably with crazing
• Alligator cracking — occasionally used, though this term more properly refers to asphalt fatigue cracking
• Checking — sometimes used for crazing, though "checking" more precisely refers to surface cracks in coatings and sealers

All of these describe the same phenomenon: a network of fine, shallow, interconnected surface cracks caused by differential shrinkage between a weak surface layer and the stronger concrete beneath.

What Causes Crazing?

Crazing is almost always caused by finishing practices, environmental conditions during finishing, or a combination of both. The common thread is the creation of a paste-rich, weak surface layer that is prone to excessive shrinkage.

Finishing-Related Causes

Finishing before bleed water has evaporated. This is the single most common cause of crazing. When a finisher begins floating or troweling while bleed water is still present on the surface, the finishing action mixes the excess water back into the surface layer, dramatically increasing the local water-to-cement ratio. This creates a weak, high-shrinkage surface layer that is virtually guaranteed to craze.

The correct practice is to wait until all visible bleed water has evaporated and the surface sheen has disappeared before beginning any finishing operations. On a warm, dry day, this may be 30–60 minutes after placement. On a cool, humid day, it may be 2–4 hours. Patience is the primary defense against crazing.

Over-troweling. Excessive troweling passes drive cement paste to the surface, creating a progressively thicker and weaker paste-rich layer. Steel troweling is particularly aggressive at densifying and paste-enriching the surface. For exterior flatwork, a broom finish after one or two float passes produces a durable surface with minimal paste buildup. Decorative hard-troweled finishes are inherently more susceptible to crazing than broom or float finishes.

Sprinkling dry cement or other fines on the surface ("dusting"). This outdated practice — scattering dry cement onto the surface to absorb bleed water and speed finishing — is the fastest way to create a crazed surface. The dry cement hydrates with the bleed water, creating a thin, weak cementitious skin that shrinks and crazes almost universally. No modern specification permits this practice, but it persists on some job sites.

Premature sealer application. Applying a film-forming sealer (acrylic, polyurethane, or epoxy) to concrete that has not fully cured traps moisture beneath the sealer. As the trapped moisture eventually migrates outward, it can cause the surface layer to craze. Penetrating sealers (silane/siloxane) do not cause this problem because they do not form a surface film.

Environmental Causes

Rapid surface drying. Hot, dry, windy conditions during finishing and immediately after can cause the surface to lose moisture faster than the interior, creating the differential shrinkage that drives crazing. This overlaps with the conditions that cause plastic shrinkage cracking, but crazing produces a much finer pattern (hairline vs. 1/32 inch+) and much shallower cracks (1/16 inch vs. 1–3 inches).

Direct sunlight on fresh concrete. Solar radiation heats the surface layer, accelerating moisture loss and increasing the temperature differential between the surface and the interior. Dark-colored concrete (integrally colored with dark pigments) absorbs more solar energy and is more susceptible.

Low humidity. Relative humidity below 40% dramatically increases the evaporation rate from the concrete surface, accelerating the differential shrinkage that causes crazing.

Mix-Related Causes

High water-to-cement ratio. A w/c ratio above 0.50 produces more bleed water, a wetter surface layer, and greater ultimate shrinkage — all factors that increase crazing risk.

Excessive fines. Mixes with a high proportion of very fine aggregate (passing the #200 sieve) or high cement content produce more paste at the surface during finishing, creating a thicker, weaker surface layer.

Certain admixtures. Some accelerating admixtures, particularly calcium chloride, increase the rate of hydration heat generation and surface drying, which can contribute to crazing. Air-entraining agents, by contrast, generally reduce crazing risk by improving the paste's resistance to surface stress.

How to Identify Crazing

Confirming that surface cracking is crazing (rather than a more significant crack type) requires checking four characteristics.

The Diagnostic Checklist

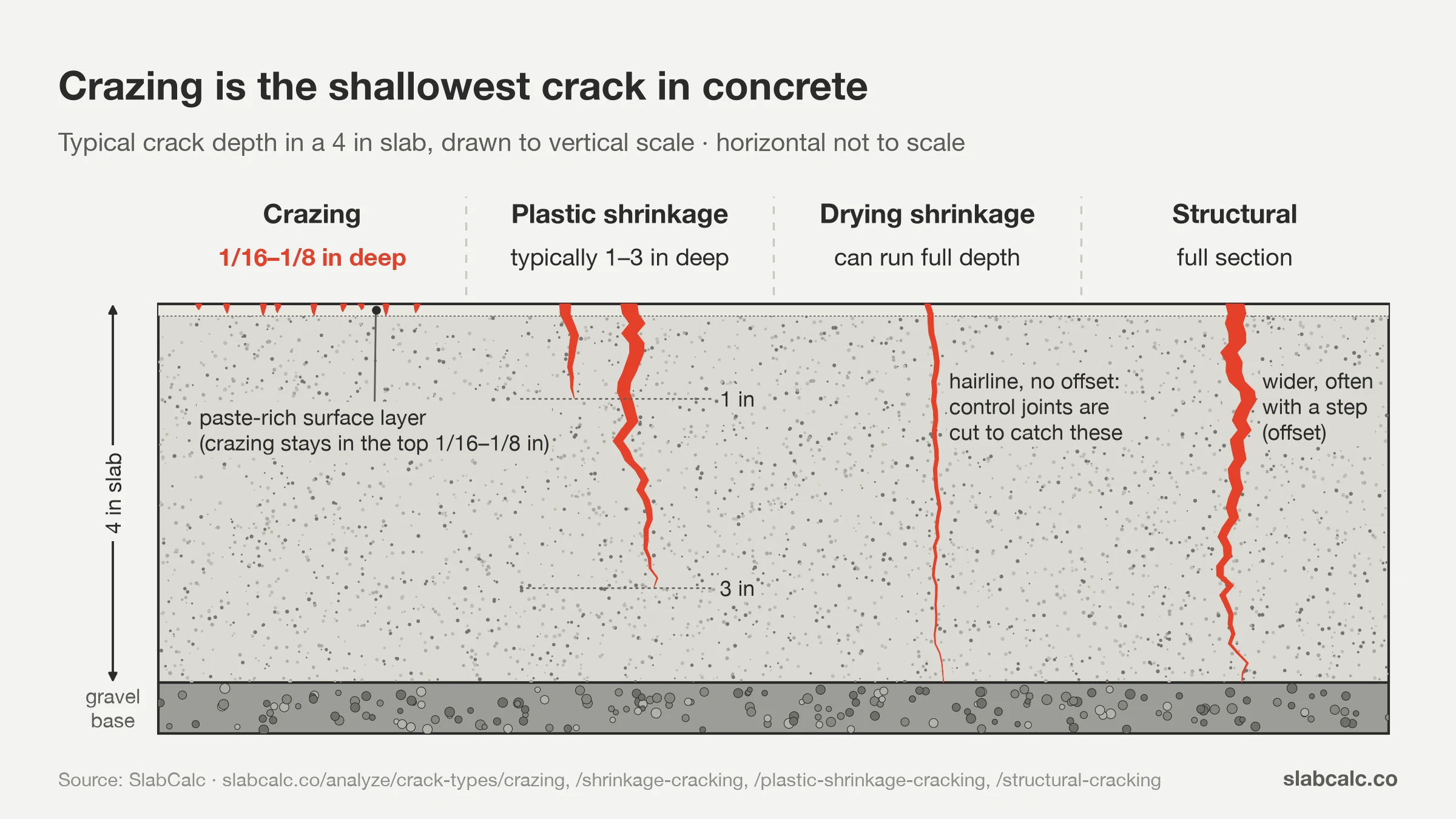

Characteristic	Crazing	Plastic Shrinkage	Drying Shrinkage	Structural
Pattern	Web/map, polygonal cells	Parallel lines, 45°	Random, wider spacing	Single linear crack
Cell/crack spacing	1/2" to 3" polygons	1–3 ft apart	6"–24" apart	N/A
Crack width	Hairline (< 0.005")	1/32"–1/8"	1/32"–1/16"	> 1/4"
Depth	< 1/8" (surface only)	1–3"	Variable	Full section
Displacement	None	None	None	Yes
When visible	First 1–7 days, after wetting	1–6 hours	First 28 days	Under load

The Scratch Test

Run your fingernail firmly across the crazed surface. If the cracks are crazing, you will barely feel them — they are too fine and shallow to catch a fingernail. If you can feel a distinct groove, the cracks are deeper than surface crazing and may be drying shrinkage or early-stage plastic shrinkage.

The Wetting Test

Crazing often becomes most visible when the surface is wet — the water fills the hairline cracks and makes the pattern stand out against the darker surrounding concrete. If your concrete surface looks smooth when dry but shows a web pattern when wet (after rain or hosing), this is classic crazing. Conversely, cracks that are clearly visible when dry are typically deeper than crazing.

When to Investigate Further

Crazing is a finishing/curing defect that appears within the first few days to weeks of a new pour. If you observe a web-like crack pattern that:

• Appears on concrete that is months or years old and was previously smooth
• Produces crack widths wider than hairline
• Shows any gel-like residue (white or clear) in the cracks
• Is accompanied by aggregate pop-outs or surface deterioration

These symptoms may indicate alkali-silica reaction (ASR) rather than crazing. ASR is a chemical reaction between alkaline cement paste and reactive silica in certain aggregates that produces an expansive gel. See the alkali-silica reaction guide for diagnosis.

Severity Assessment

Crazing is always severity 1–2. It never becomes structural, never deepens beyond the surface layer, and never indicates soil movement or loading problems. The only scenario where crazing warrants more than cosmetic attention is in freeze-thaw climates, where unsealed surface cracks allow water infiltration that can cause surface scaling during freeze-thaw cycles.

Severity	Extent	Climate	Recommended Action	Est. Cost
1	Isolated areas	Any	Accept as cosmetic; no action needed	$0
1	Widespread	Mild (no freeze-thaw)	Accept as cosmetic; optional sealer	$0–$60
2	Widespread	Freeze-thaw or salt exposure	Seal with penetrating sealer	$30–$120

Crazing does not progress to a higher severity over time. The cracks form, the stress is relieved, and the pattern stabilizes. New crazing cracks do not form after the initial curing period. If a crazed surface appears to be getting worse over time, re-evaluate — it may be a different mechanism (ASR, freeze-thaw scaling, or chemical attack) rather than crazing.

Full 1–5 severity scale explained →

Treatment Options

Note the deliberate word choice: "treatment," not "repair." Crazing cannot be repaired in the traditional sense — the cracks cannot be undone. Treatment options either protect the surface, mask the appearance, or replace the surface entirely.

Accept as Cosmetic (Recommended Default)

For most residential flatwork — driveways, sidewalks, patios, garage floors — accepting crazing as a cosmetic characteristic of the concrete is the most practical and cost-effective approach. Crazing does not reduce concrete strength, does not shorten service life (assuming the surface is not subjected to aggressive freeze-thaw with de-icing salts), and often becomes less visible as the concrete ages, dirt fills the fine cracks, and the overall surface develops natural patina.

Many industry references, including PCA publications and ACI 302.1R, explicitly note that crazing is a surface imperfection, not a defect, and does not warrant rejection of the concrete work. Cost: $0.

Penetrating Sealer

A penetrating silane/siloxane sealer (such as Siloxa-Tek 8500 or Foundation Armor SX5000) applied to a crazed surface provides two benefits: it prevents water from entering the fine cracks (important in freeze-thaw climates), and it slightly darkens the concrete surface to a uniform tone that reduces the visual contrast of the crazing pattern.

Penetrating sealers do not form a surface film, do not change the texture, do not create a slippery surface, and do not peel or flake. They penetrate into the concrete pore structure and chemically bond, providing protection for 5–10 years before reapplication is needed.

Application: clean the surface, apply with a pump sprayer or roller in two coats (second coat while the first is still wet), at 200–300 sq ft per gallon per coat. Total cost for a typical 400 sq ft patio: $30–$120 DIY, $200–$400 professional.

Surface Coating

Film-forming coatings — acrylic sealers, epoxy coatings, or elastomeric coatings — cover the crazing pattern entirely and provide a uniform appearance. Options include:

• Acrylic sealer ($30–$60/gal): Provides a wet-look or semi-gloss finish. Easy to apply but requires recoating every 1–3 years. Can become slippery when wet.
• Epoxy coating ($50–$100/gal): For interior surfaces (garage floors). Creates a thick, durable, high-gloss surface. Not recommended for exterior use (UV degradation, moisture vapor transmission issues).
• Elastomeric coating ($40–$80/gal): For exterior surfaces. Flexible enough to bridge hairline cracks. Matte to satin finish. Durable but changes the surface appearance and texture significantly.

All coatings require thorough surface preparation (cleaning, etching, or grinding) for adhesion. Coating over a poorly prepared surface will peel and look worse than the original crazing.

Grinding and Polishing

An angle grinder with a diamond cup wheel can remove the crazed surface layer (the top 1/16 to 1/8 inch), exposing the sound, aggregate-rich concrete beneath. For interior surfaces, this can be extended into a full polished concrete finish — a progressive grinding process through increasingly fine diamond grits (30, 60, 100, 200, 400, 800, 1500, 3000) that produces a mirror-like surface.

Grinding removes the problem entirely — the crazed layer is gone. The exposed surface is denser, harder, and not susceptible to crazing. The trade-off is that grinding changes the surface appearance completely: exposed aggregate replaces the original smooth-finished look.

Cost: $2–$6 per sq ft for basic grinding, $4–$12 per sq ft for full polished concrete finish. Most grinding projects require professional equipment and expertise.

Thin Overlay

A cementitious overlay (1/16 to 1/8 inch thick) applied over the crazed surface creates a completely new surface that covers the crazing pattern. Polymer-modified micro-toppings (such as Ardex K-301 or Quikrete Re-Cap) are designed specifically for this application. They bond to the existing concrete, fill the crazing, and provide a smooth, uniform surface that can be finished with a broom, trowel, or decorative texture.

The overlay itself is susceptible to crazing if not properly cured, so the same finishing and curing practices that prevent crazing on new concrete must be applied to the overlay. A well-applied overlay lasts 5–15 years depending on traffic and exposure.

Cost: $100–$200 DIY materials for 400 sq ft, $800–$2,000 professionally applied. Surface preparation (cleaning, profiling) is critical for adhesion and typically adds $1–$2 per sq ft.

DIY vs. Professional

Crazing treatment is mostly DIY territory, with professional help needed only for grinding, polishing, and overlay work.

Handle it yourself if:

• You choose to accept the crazing as cosmetic (no action needed)
• You want to apply a penetrating sealer (straightforward pump sprayer application)
• You want to apply an acrylic sealer or coating (roller or sprayer application)
• The area is manageable (under 1,000 sq ft)

Call a contractor if:

• You want grinding, polishing, or overlay work (requires specialized equipment)
• The surface has additional issues beyond crazing (scaling, spalling, large cracks)
• Decorative finish restoration is needed (stamped, colored, or exposed-aggregate concrete)
• You are evaluating whether the pattern is crazing vs. ASR or other deterioration

Prevention for Future Concrete

Crazing is highly preventable. The following practices eliminate the conditions that create the weak surface layer responsible for crazing.

Finishing Practices

Wait for bleed water. Do not begin any finishing operation until all surface bleed water has evaporated and the surface sheen has disappeared. This is the single most important rule for preventing crazing. On a warm day, this typically takes 30–60 minutes after placement. On a cool, humid day, it may take 2–4 hours. Resist the temptation to "get started" before the surface is ready.

Do not over-trowel. Limit finishing passes to the minimum needed for the desired surface texture. For exterior flatwork (driveways, sidewalks, patios), a single float pass followed by broom finishing provides a durable, craze-resistant surface. Hard-troweled finishes (multiple steel trowel passes) drive paste to the surface and increase crazing risk.

Never dust the surface. Never sprinkle dry cement, sand, or other fine materials onto the surface to absorb bleed water. This outdated practice creates the exact paste-rich, weak surface layer that causes crazing. If bleed water is excessive, wait for it to evaporate or remove it by dragging a hose across the surface.

Avoid premature finishing. If the concrete is too stiff to finish properly (common in hot weather when the surface sets while waiting for bleed water), use an evaporation retarder during the waiting period rather than trying to force-finish concrete that has already begun to set.

Curing

Begin curing immediately after finishing. Apply curing compound (ASTM C309) within 10–30 minutes of final finishing. The surface should never be left exposed to the air for more than 30 minutes after the last finishing pass. In hot, dry, or windy conditions, consider fog spraying over the surface between finishing passes to prevent premature surface drying.

Cure for a minimum of 7 days. Per ACI 308R, maintain moisture at the concrete surface for at least 7 days. Inadequate curing duration is a primary contributor to crazing — the surface layer dries out before it has developed adequate strength to resist shrinkage stress.

Mix Design

Specify a maximum w/c ratio of 0.50 for flatwork. Lower w/c ratios produce less bleed water, a denser surface layer, and lower shrinkage — all factors that reduce crazing risk.

Do not add water at the job site. Field-added water increases the w/c ratio of the surface layer (which receives the added water first) and is one of the most common contributors to crazing.

Ensure proper aggregate gradation. A well-graded aggregate blend with adequate intermediate sizes reduces the volume of cement paste in the mix, leaving less paste to work to the surface during finishing. Gap-graded mixes (missing intermediate sizes) produce more paste and are more prone to crazing.

For more prevention strategies, see How to prevent concrete cracking and Curing methods compared.

Cost Estimates

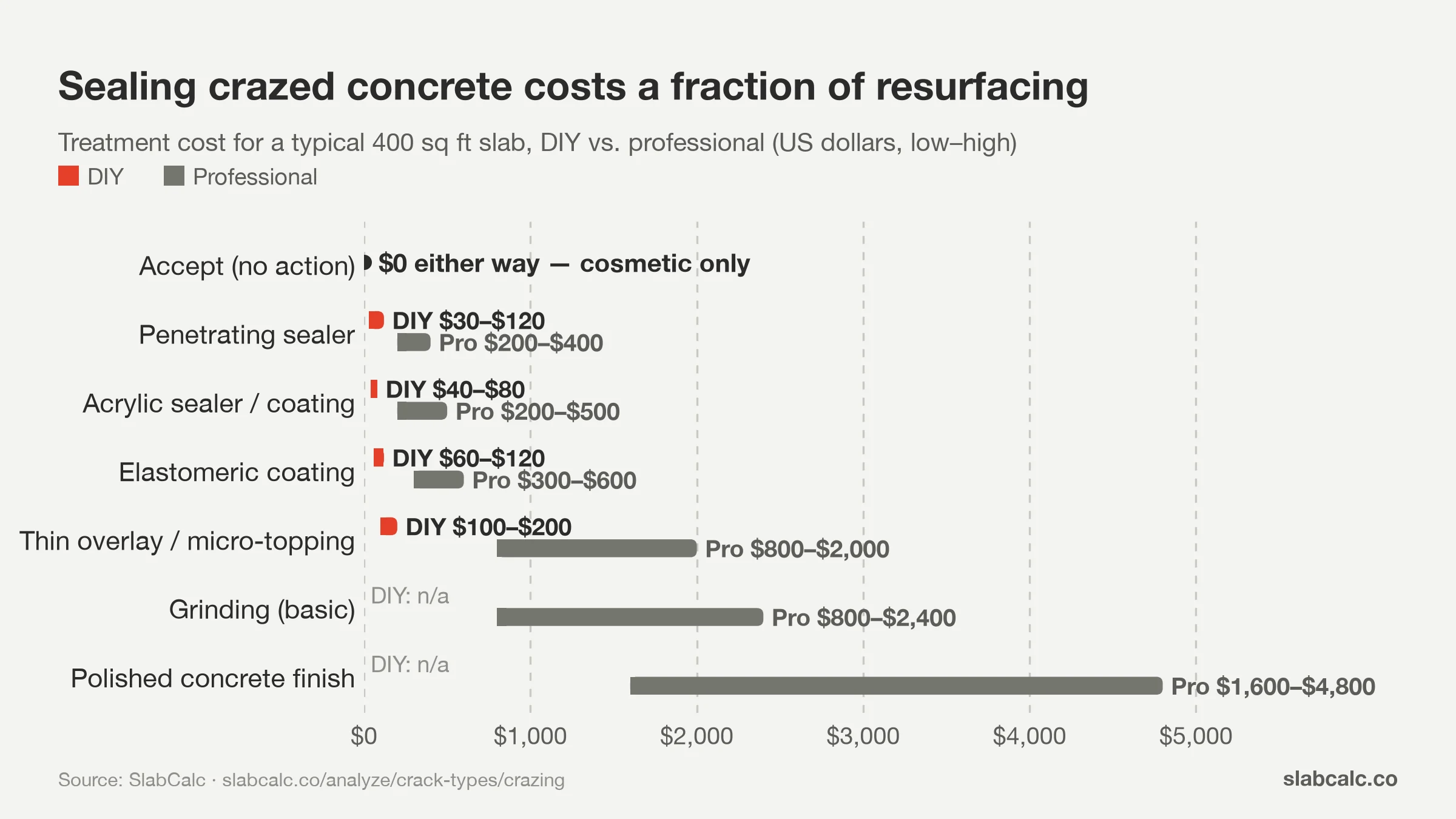

Treatment	DIY Cost	Professional Cost	Appearance Improvement	Longevity
Accept (no action)	$0	$0	None	N/A
Penetrating sealer	$30–$120	$200–$400	Slight (uniform darkening)	5–10 years
Acrylic sealer/coating	$40–$80	$200–$500	Moderate (wet look or gloss)	1–3 years
Elastomeric coating	$60–$120	$300–$600	High (covers pattern)	5–8 years
Grinding (basic)	N/A	$800–$2,400	Complete (new surface)	Permanent
Polished concrete finish	N/A	$1,600–$4,800	Complete (mirror finish)	Permanent
Thin overlay/micro-topping	$100–$200	$800–$2,000	Complete (new surface)	5–15 years

For most homeowners, a $30–$120 penetrating sealer provides the best value: it protects the surface in freeze-thaw climates, slightly improves appearance, and requires no special skills or equipment. Higher-cost treatments are justified only when appearance standards demand a like-new surface.

Key Takeaways

• Crazing is cosmetic, not structural. The fine web of hairline cracks is limited to the top 1/16 to 1/8 inch of the surface and has zero effect on concrete strength, load capacity, or service life.
• Finishing too early is the #1 cause. Starting to float or trowel before all bleed water has evaporated creates the paste-rich, weak surface layer that crazes. Wait for the surface sheen to disappear.
• Over-troweling and "dusting" are also major causes. Both practices drive excess paste to the surface. Limit finishing passes and never sprinkle dry cement on the concrete surface.
• Crazing cannot be repaired, only treated. Options range from acceptance (free) to penetrating sealer ($30–$120) to overlay ($800–$2,000). The default recommendation for most residential flatwork is accept + seal.
• Seal in freeze-thaw climates. While crazing itself is harmless, unsealed hairline cracks allow water entry that can cause surface scaling during freeze-thaw cycles. A penetrating silane/siloxane sealer prevents this.
• Do not confuse crazing with ASR. Crazing appears in the first days/weeks on new concrete. A web-like pattern appearing months or years later on previously smooth concrete, especially with gel deposits, may be alkali-silica reaction — a more serious condition requiring evaluation.
• Prevention is simple: wait, don't overwork, cure immediately. Three basic finishing practices eliminate crazing on virtually every pour.

Next Steps

• Upload a photo to the crack analyzer →
• Shrinkage cracking guide → — covers the broader shrinkage family (plastic + drying)
• Plastic shrinkage cracking guide → — the related but deeper crack type
• How to seal concrete →
• How to prevent concrete cracking →
• Full severity scale explained →
