Plastic Shrinkage Cracking: Real-Time Prevention, Diagnosis & Repair Guide

What Is Plastic Shrinkage Cracking?

Plastic shrinkage cracking is the formation of cracks in freshly placed concrete during the first 1–6 hours after placement, while the concrete is still in its plastic (unset) state. The mechanism is straightforward: when moisture evaporates from the concrete surface faster than bleed water can migrate upward to replace it, the surface layer undergoes volume contraction. Because the concrete has not yet developed any meaningful tensile strength (tensile strength at 2–4 hours is effectively zero), even small contractive forces cause the surface to crack.

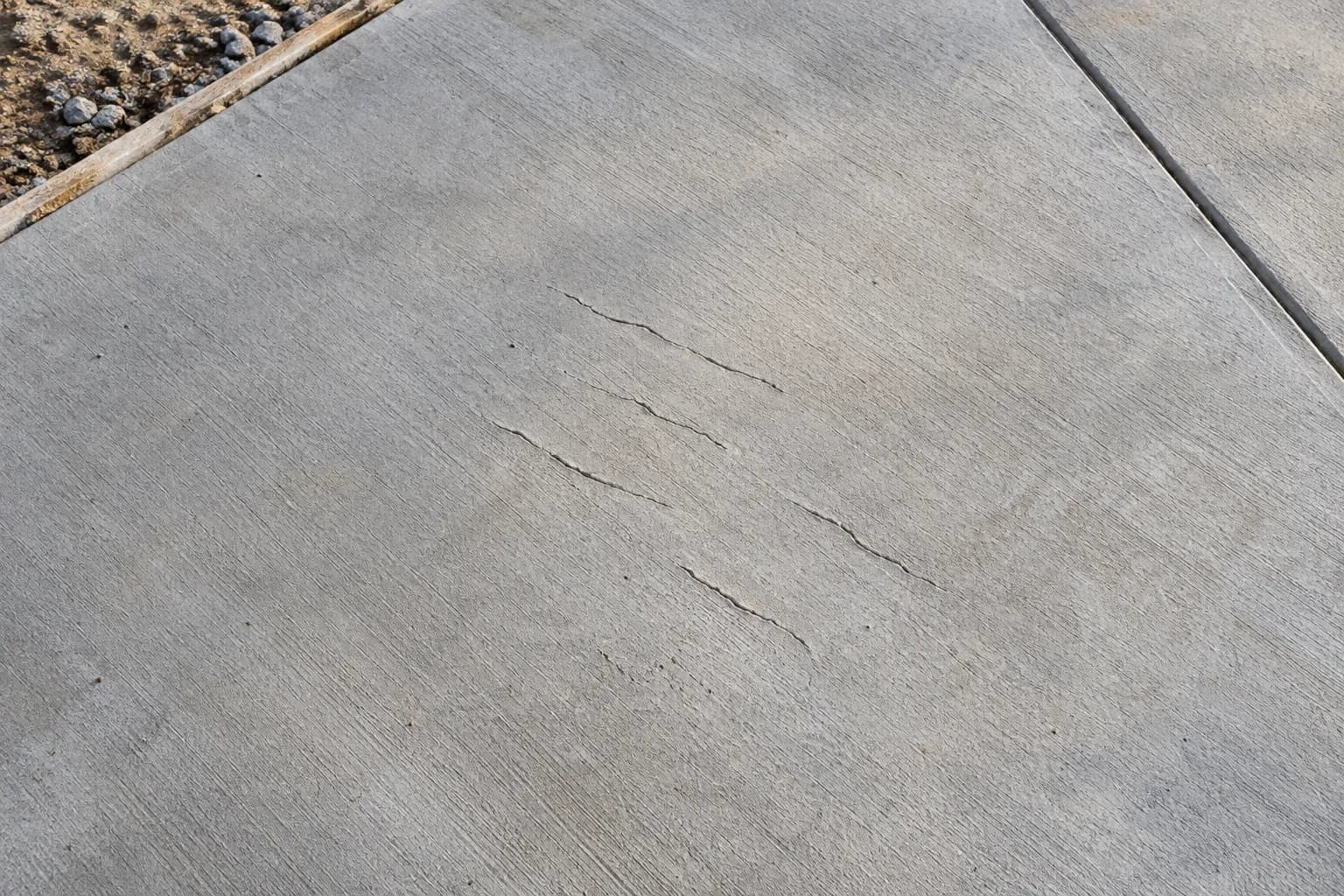

The visual signature of plastic shrinkage cracking is distinctive and consistent. The cracks are roughly parallel to each other, spaced 1–3 feet apart, and typically run at approximately 45 degrees to the slab edges — though the angle depends on wind direction and slab geometry. Individual cracks range from 2 inches to several feet in length and penetrate 1–3 inches into the slab. The cracks are wider at the surface (typically 1/32 to 1/8 inch) and taper to nothing at their base.

This pattern differs sharply from other crack types that can appear on young concrete:

Feature	Plastic Shrinkage	Drying Shrinkage / Crazing	Structural
Timing	1–6 hours	Days to months	Anytime under load
Pattern	Parallel, 45-degree	Random map/web	Single linear
Spacing	1–3 feet apart	Irregular, dense	N/A
Depth	1–3 inches	Surface only	Full depth
Width	1/32"–1/8"	Hairline	> 1/4"
Displacement	None	None	Yes

Crazing is often confused with plastic shrinkage, but the two are distinct. Crazing produces a fine, web-like pattern of interconnected hairline cracks that are limited to the very surface of the slab — typically the top 1/16 inch. Plastic shrinkage cracks are wider, deeper, and follow a parallel rather than web pattern. For a complete guide to crazing, see Crazing: spider cracks in concrete.

The timing of plastic shrinkage cracking is what makes it both preventable and unforgiving. The window of vulnerability is narrow — roughly the first 1–6 hours after placement, and often concentrated in a 2–3 hour period when finishing is underway and the surface is exposed. Once the concrete reaches initial set (typically 4–8 hours after batching), plastic shrinkage risk drops to zero. But any cracks that formed during the plastic phase are permanent — the concrete hardens around them.

What Causes Plastic Shrinkage Cracking?

Plastic shrinkage cracking is fundamentally a moisture balance problem: surface evaporation exceeds the rate at which bleed water reaches the surface. Four environmental factors control the evaporation rate, and their combined effect — not any single factor — determines the risk level.

The Evaporation Rate Equation

ACI 305R-20 ("Guide to Hot Weather Concreting") provides the standard nomograph for calculating the concrete surface evaporation rate based on four variables:

1. Air temperature — higher temperature increases evaporation capacity
2. Concrete temperature — warmer concrete releases moisture faster
3. Relative humidity — lower humidity increases the vapor pressure gradient
4. Wind speed — wind removes the saturated air layer above the surface, accelerating evaporation

The critical threshold is 0.25 lb/ft²/hr. Above this rate, the evaporation demand exceeds the bleed water supply for most conventional concrete mixes, and plastic shrinkage cracking becomes likely without protective measures.

To illustrate: at 90°F air temperature, 75°F concrete temperature, 40% relative humidity, and 10 mph wind, the evaporation rate reaches approximately 0.30 lb/ft²/hr — above the threshold. Change the wind to 0 mph and the rate drops to approximately 0.12 lb/ft²/hr — well below the threshold. Wind is often the dominant variable in borderline conditions.

ACI 305R conservatively recommends that precautions be taken whenever the evaporation rate exceeds 0.20 lb/ft²/hr, giving a safety margin below the 0.25 threshold. Some researchers and the PCA have suggested that the actual cracking threshold may be lower for high-performance mixes with very low bleed rates (w/c below 0.40), making precautions even more important for these mixes.

Mix Design Factors

The concrete mix itself influences susceptibility. Mixes with low water-to-cement ratios (below 0.40) produce less bleed water, meaning the surface dries out faster. Mixes with high cement content generate more heat of hydration, raising the concrete temperature and accelerating surface evaporation. Silica fume and fly ash at high replacement rates reduce bleeding. Air-entrained concrete bleeds less than non-air-entrained concrete.

The practical implication: high-performance mixes (high cement, low w/c, supplementary cementitious materials) are more susceptible to plastic shrinkage than conventional mixes, despite being stronger in every other respect. This is counterintuitive and often catches contractors off guard when they transition from standard to high-performance concrete.

Slab Geometry

Thin slabs (4 inches or less) are more susceptible than thick slabs because the bleed water reservoir is shallower. Wide, exposed slabs (parking lots, industrial floors, large patios) have greater surface area exposed to evaporation than narrow elements. Slabs placed over vapor barriers (polyethylene sheeting) cannot draw moisture from the subbase, reducing the total moisture available and increasing cracking risk.

Delayed Finishing

Any delay between screeding and the start of finishing operations leaves the surface exposed and unprotected. On high-evaporation days, even a 15–20 minute delay between screeding and bull floating can allow the surface to dry enough to initiate plastic shrinkage cracking. The crack-vulnerable period often coincides with the waiting period between bull floating and final troweling — the surface appears to have "firmed up," but what has actually happened is that it has dried.

How to Identify Plastic Shrinkage Cracking

Plastic shrinkage cracks have a consistent visual signature that makes them identifiable even long after the pour:

Parallel orientation. The cracks run roughly parallel to each other, typically at 30–60 degrees to the slab edges. The angle correlates with the direction of the prevailing wind during placement — cracks tend to form perpendicular to the wind direction. If no dominant wind direction was present, the cracks may appear more randomly oriented but still maintain their parallel spacing.

Regular spacing. Cracks are typically 1–3 feet apart, significantly wider spacing than crazing (inches) and more regular than structural cracks (which follow stress lines, not evaporation patterns).

Moderate depth. Insert a thin wire into the crack. Plastic shrinkage cracks typically extend 1–3 inches into the slab — deeper than surface crazing (less than 1/8 inch) but shallower than full-depth structural or settlement cracks. In thin (4-inch) slabs, they may extend through the full thickness.

No displacement. Both sides of the crack are at the same elevation — there is no step or offset between the edges. Any displacement indicates a different failure mode (settlement or structural).

Early appearance. If you were present during the pour, plastic shrinkage cracks appeared within the first few hours. If you are examining an existing slab, the presence of the parallel pattern in combination with shallow depth and no displacement strongly suggests plastic shrinkage as the origin.

Not sure what type of crack you have? Upload a photo to the AI crack analyzer →

Severity Assessment

Plastic shrinkage cracks are almost always severity 1–2. They do not indicate structural loading, foundation movement, or design deficiency — only that environmental conditions during placement were not adequately managed. The concrete beneath the cracked surface is fully sound.

Severity	Width	Depth	Recommended Action	Est. Cost
1	< 1/32"	< 1"	Monitor; optional sealer	$0–$25
2	1/32"–1/8"	1"–3"	Seal with penetrating sealer or caulk	$25–$150

In rare cases, severe plastic shrinkage cracking on thin slabs can produce full-depth cracks that compromise the slab's ability to transfer load across the crack. This elevates the severity to 3 and may require professional assessment, but it is uncommon with standard 4-inch or thicker residential slabs.

The primary concerns with plastic shrinkage cracks are aesthetic (the parallel pattern is visually obvious) and moisture infiltration (unsealed cracks allow water into the slab, which is problematic in freeze-thaw climates). Neither concern is structural.

Full 1–5 severity scale explained →

Prevention Strategies

Prevention is the primary value proposition for plastic shrinkage cracking — these cracks are almost entirely avoidable with proper planning and execution. Once the concrete sets with cracks, no repair will restore the original monolithic surface. The following strategies are listed in order of impact and practicality.

Pre-Pour Weather Assessment

Before scheduling a pour, check the forecast for the placement time window (typically 6–8 hours from batching through finishing). Calculate the expected evaporation rate using the four ACI 305R variables. If the predicted rate exceeds 0.20 lb/ft²/hr, plan mitigation measures. If it exceeds 0.35 lb/ft²/hr, strongly consider rescheduling — mitigation measures may not be sufficient in extreme conditions.

The best time to pour concrete guide covers seasonal and time-of-day considerations in detail. In general, early morning pours (starting at or before sunrise) in warm weather provide the best conditions: lower air temperature, higher humidity, calmer winds, and rising bleed water rates as the concrete warms during the day.

Windbreaks

Wind is often the dominant evaporation variable in borderline conditions, and windbreaks are the most cost-effective mitigation measure. Plywood sheets, polyethylene tarps on frames, or commercial wind fencing placed upwind of the placement area reduce wind speed at the slab surface by 50–80%.

Effective windbreaks should be at least 4 feet tall and extend along the full upwind edge of the slab. They do not need to be airtight — even a porous windbreak (such as shade cloth or snow fencing) reduces wind speed significantly. For large pours (parking lots, warehouse floors), portable wind fencing systems are available for rent.

The reduction in evaporation rate from windbreaks alone can be dramatic. At 10 mph wind, reducing the effective wind speed at the surface to 2–3 mph can cut the evaporation rate by 40–60%, often bringing it below the critical threshold.

Sunshades

Direct solar radiation heats both the concrete surface and the surrounding air, increasing the evaporation rate. White or reflective sunshades (polyethylene tarps, shade cloth) positioned above the slab can reduce the surface temperature by 10–20°F. This is particularly effective on hot, calm days when wind is not the primary driver of evaporation.

Evaporation Retarders

Evaporation retarders (also called finishing aids or monomolecular films) are spray-applied products that form an invisible, one-molecule-thick film on the concrete surface. This film dramatically reduces surface evaporation without interfering with finishing operations — you can bull float, edge, and trowel right through the film. Reapply after each finishing pass that disrupts the film.

Common products include Confilm, MasterKure ER 50, and Eucocure Evaporation Retarder. Application rate is typically 200–400 sq ft per gallon, applied with a pump sprayer immediately after screeding. Cost is approximately $15–$30 per gallon — an insignificant investment relative to the cost of crack repair.

Important: evaporation retarders are not curing compounds. They slow surface moisture loss during the finishing period but do not provide long-term moisture retention. A curing compound (ASTM C309) or wet curing must still be applied after finishing is complete.

Fog Spraying

Fog spraying — directing a very fine water mist into the air above the slab (not onto the surface) — increases the local humidity immediately above the concrete, reducing the vapor pressure gradient and slowing evaporation. The key is to spray above the slab, not directly onto it: water applied directly to the plastic concrete surface increases the water-to-cement ratio of the surface layer and causes crazing, dusting, and scaling.

Use a garden hose with a fog nozzle attachment, or a dedicated concrete fog sprayer. The mist should be fine enough to evaporate before reaching the surface. This technique is most effective on hot, dry days with low ambient humidity.

Synthetic Fiber Reinforcement

Synthetic microfibers (polypropylene or nylon) at a dosage of 1.5 lb per cubic yard provide dramatic reduction in plastic shrinkage cracking — 80–90% per PCA testing. The fibers are pre-measured in water-soluble bags and added directly to the truck mixer at the batch plant or on-site. They disperse uniformly during mixing and provide millions of micro-reinforcement elements throughout the concrete matrix.

The mechanism is simple: the fibers bridge micro-cracks as they begin to form, arresting crack propagation before the cracks grow large enough to be visible. At 1.5 lb/yd³, the fibers have negligible effect on workability, air content, or strength. Cost is approximately $6–$10 per cubic yard — roughly $50–$80 for a typical residential driveway pour.

Fibers are an excellent insurance policy but should not replace environmental controls. They reduce cracking severity but do not eliminate the underlying cause (surface drying). A pour with fibers and no other precautions on a high-evaporation day will still develop some cracking — just less severe cracking.

Mix Modifications

For pours scheduled during marginal conditions, several mix modifications can reduce plastic shrinkage risk:

• Lower concrete temperature. Request chilled water or ice replacement at the batch plant to reduce concrete temperature by 10–20°F. Lower concrete temperature directly reduces the evaporation rate. Cost: $5–$15 per yard.
• Retarding admixture. Extends the plastic phase, giving more time for finishing and for bleed water to reach the surface. Does not reduce evaporation but extends the window for protective measures.
• Increase aggregate size. Larger maximum aggregate size (1 inch vs 3/4 inch) reduces paste content, which reduces both bleed water demand and shrinkage potential.

Pour Timing

On high-risk days, schedule the pour for early morning (beginning at sunrise or earlier) or late afternoon/evening. Early morning provides the coolest, calmest, most humid conditions of the day. Evening pours avoid the midday peak heat and wind but require adequate lighting for finishing operations.

ACI 305R recommends avoiding concrete placement when the air temperature exceeds 95°F unless comprehensive hot-weather precautions are in place. Many specifications set a lower limit of 85°F or 90°F for routine work.

How to Repair Plastic Shrinkage Cracks

Immediate Repair (While Concrete Is Still Plastic)

If you notice cracks forming within the first 1–2 hours of placement — and the concrete is still workable enough to finish — re-troweling can close the cracks. Work a magnesium float or steel trowel over the cracked area with firm pressure, re-consolidating the surface layer and closing the crack faces. This is only possible while the concrete is genuinely plastic; once initial set has begun (the surface does not take a thumbprint), re-troweling will only damage the surface.

After re-troweling, immediately apply protective measures (evaporation retarder, fog spraying, windbreak) to prevent the cracks from reopening. The underlying condition that caused the cracks — high evaporation rate — is still present, and re-troweling does not change the evaporation rate.

Post-Hardening Repair

Once the concrete has set, plastic shrinkage cracks are permanent features of the slab surface. Repair options include:

Penetrating sealer — for hairline cracks (under 1/32 inch), a penetrating concrete sealer (silane/siloxane) applied over the surface wicks into fine cracks by capillary action, sealing them against moisture infiltration. The cracks remain visible but are protected. Cost: $30–$60 per gallon, covering 200–300 sq ft per gallon.

Polyurethane caulk — for cracks 1/32 to 1/8 inch wide, a flexible polyurethane sealant (such as Sikaflex Pro Select) fills the crack and prevents water entry. The sealant is visible on the surface, so color-matching is important for appearance-sensitive areas. Cost: $8–$15 per tube.

Routing and sealing — for wider cracks, a router or angle grinder with a diamond blade creates a uniform channel (typically 1/4 inch wide by 1/2 inch deep), which is then filled with a flexible sealant. Routing creates a wider, more uniform repair that is visually consistent, though obviously visible. This is the standard professional approach.

Cementitious overlay — when plastic shrinkage cracking is extensive (many parallel cracks covering the entire slab), a thin cementitious overlay (1/16 to 1/8 inch thick) can encapsulate all cracks and restore a uniform surface. Products like Quikrete Re-Cap or Sakrete Top 'N Bond are suitable. Cost: $100–$200 in materials for a 400 sq ft area, or $800–$1,500 professionally applied.

DIY vs. Professional Repair

Plastic shrinkage crack repair is relatively DIY-friendly because the cracks are shallow, stable, and pose no structural risk.

Handle it yourself if:

• Cracks are under 1/8 inch wide with no displacement
• You want to seal cracks for moisture protection (penetrating sealer or caulk)
• The cracking is limited to a manageable area
• Appearance is not a primary concern

Call a contractor if:

• Extensive cracking covers the entire slab and you want resurfacing
• Cracks are full-depth in a thin slab (structural concern)
• The slab is under warranty and you need documentation
• High-appearance surfaces (decorative, stamped, or interior exposed concrete)

Cost Estimates

Prevention is dramatically less expensive than repair. The following table compares the cost of preventive measures against post-cracking repair for a typical 400 sq ft residential pour.

Item	Type	Cost	Notes
Synthetic microfibers (1.5 lb/yd³)	Prevention	$50–$80 per pour	Added at batch plant
Evaporation retarder	Prevention	$15–$30 per gallon	Covers 200–400 sq ft
Windbreak materials	Prevention	$50–$150	Plywood/tarps, reusable
Chilled water/ice at batch plant	Prevention	$5–$15 per yard	Reduces concrete temp 10–20°F
Penetrating sealer	Repair	$30–$60 per gallon	Surface application, 200–300 sq ft/gal
Polyurethane caulk	Repair	$8–$15 per tube	Per crack
Route and seal (professional)	Repair	$5–$10 per linear foot	Router + sealant
Cementitious overlay (DIY)	Repair	$100–$200	Materials for 400 sq ft
Cementitious overlay (professional)	Repair	$800–$1,500	400 sq ft, includes prep

The math is clear: $50–$150 in prevention measures eliminates a $200–$1,500 repair problem. For every pour scheduled during warm weather (April through October in most of the US), synthetic fibers and an evaporation retarder should be considered standard practice, not optional extras.

Key Takeaways

• Plastic shrinkage cracks form in the first 1–6 hours while concrete is still plastic, before any tensile strength develops. They are caused by surface evaporation exceeding the bleed water supply rate.
• The ACI 305R threshold is 0.25 lb/ft²/hr. Above this evaporation rate, plastic shrinkage cracking is likely without protective measures. Check the four variables (air temp, concrete temp, humidity, wind) before every warm-weather pour.
• Wind is often the dominant variable. A simple windbreak can reduce the evaporation rate by 40–60% and is the most cost-effective prevention measure in borderline conditions.
• Synthetic fibers reduce cracking by 80–90%. At $6–$10 per cubic yard, polypropylene microfibers at 1.5 lb/yd³ are the best insurance policy against plastic shrinkage cracking. They supplement but do not replace environmental controls.
• Evaporation retarders bridge the gap between screeding and curing compound application. Apply immediately after screeding and reapply after each finishing pass.
• Re-troweling works if caught immediately. If you see cracks forming while the concrete is still workable (first 1–2 hours), re-trowel to close them and immediately apply protective measures. Once the concrete sets, the cracks are permanent.
• Prevention costs $50–$150. Repair costs $200–$1,500. For warm-weather pours, fibers + evaporation retarder should be standard practice.
