Underground Parking Garage Wall Thickness: Retaining Wall Sizing by Depth
Below-grade parking structures require reinforced concrete retaining walls sized for lateral earth pressure, surcharge loads, and hydrostatic pressure. Wall thickness ranges from 250 mm (10 in) for single-level structures to 400 mm+ (16 in+) for three or more below-grade levels. This guide provides wall sizing by depth, concrete specification, waterproofing system requirements, and the governing ACI and IBC references.
Underground parking garage retaining walls serve two simultaneous functions: they retain the surrounding soil and they form the structural perimeter of the building. Unlike above-grade parking structures where the perimeter is typically open or lightweight cladding, below-grade walls must resist continuous lateral pressure from earth, water, and any surcharge loads above the retained soil.
Wall thickness is driven primarily by the retained height (depth below grade), soil properties, groundwater conditions, and any surcharge from adjacent structures or traffic above. A wall that is structurally adequate for earth pressure may still be inadequate if it does not provide sufficient concrete cover for corrosion resistance in a wet, chloride-exposed environment.
Lateral Loading
Retaining walls for underground parking resist three categories of lateral load:
At-rest earth pressure. Because the parking structure is rigid and does not allow the wall to deflect significantly, the at-rest pressure coefficient (Ko) applies rather than the active pressure coefficient (Ka). For most soils:
- Ko ≈ 0.5 for normally consolidated granular soils
- Ko ≈ 0.5–0.7 for overconsolidated clays
- Ko = 1 − sin(φ) is the standard Jaky approximation for normally consolidated soils
At-rest pressure produces a triangular distribution increasing linearly with depth: p = Ko × γ × h, where γ is the soil unit weight and h is the depth.
Surcharge loads. Any load applied at the ground surface above the retained soil adds a uniform or linearly varying component to the lateral pressure. Common surcharges:
- Adjacent traffic: 10–15 kPa (200–300 psf) equivalent surcharge
- Adjacent building foundations: per structural analysis
- Construction equipment staging: 10–25 kPa (200–500 psf) temporary
Hydrostatic pressure. Where the groundwater table is above the base of the wall, full hydrostatic pressure (γw × hw) acts on the wall. This can be the dominant lateral load in high-water-table sites. Hydrostatic pressure is not reduced by drainage systems for design purposes unless the drainage system is engineered and maintained as a permanent dewatering installation.

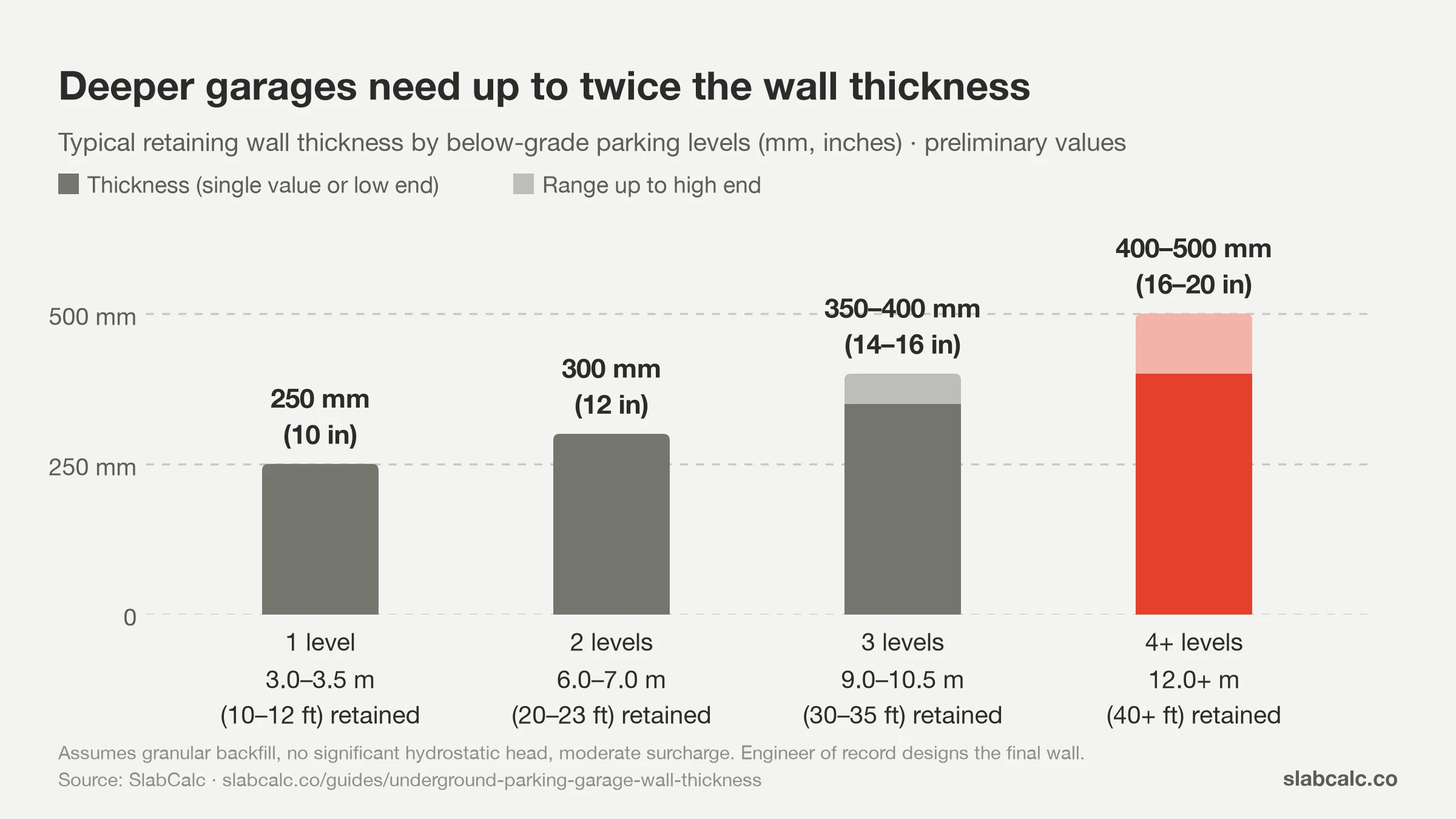

Wall Thickness by Depth
The following table provides typical wall thicknesses for cast-in-place reinforced concrete retaining walls in underground parking structures. Values assume normal-weight concrete (23.6 kN/m³), granular backfill (γ = 18 kN/m³, Ko = 0.5), no significant hydrostatic head, and moderate surcharge.
| Below-Grade Levels | Retained Height | Wall Thickness | Primary Rebar (Vertical) | Horizontal Steel | Min f'c |
|---|---|---|---|---|---|
| 1 level | 3.0–3.5 m (10–12 ft) | 250 mm (10 in) | #5 @ 200 mm (8 in) o.c. EF | #4 @ 300 mm (12 in) o.c. | 28 MPa (4,000 PSI) |
| 2 levels | 6.0–7.0 m (20–23 ft) | 300 mm (12 in) | #6 @ 200 mm (8 in) o.c. EF | #5 @ 250 mm (10 in) o.c. | 28–35 MPa (4,000–5,000 PSI) |
| 3 levels | 9.0–10.5 m (30–35 ft) | 350–400 mm (14–16 in) | #7 @ 200 mm (8 in) o.c. EF | #5 @ 200 mm (8 in) o.c. | 35 MPa (5,000 PSI) |
| 4+ levels | 12.0+ m (40+ ft) | 400–500 mm (16–20 in) | #8 @ 150–200 mm (6–8 in) o.c. EF | #6 @ 200 mm (8 in) o.c. | 35 MPa (5,000 PSI) |
EF = each face. Walls over 250 mm (10 in) thick require reinforcement on both faces per ACI 318 §11.7.2.
Critical notes:
- These are starting-point values for preliminary design. The structural engineer of record must design the wall for actual site conditions.
- High groundwater, expansive clay soils, seismic loading, or heavy surcharge loads can increase wall thickness and reinforcement significantly beyond these values.
- Pilaster or counterforts may be used for walls exceeding 400 mm thickness to reduce the flat wall section.
For a complete preliminary specification including wall thickness, slab depth, and concrete grade for your underground structure, use the Parking Garage Spec Calculator.
Concrete Specification
Below-grade parking structure walls have specific concrete requirements driven by moisture exposure and potential chloride contact:
| Parameter | Requirement | Reference |
|---|---|---|
| Minimum compressive strength | 28 MPa (4,000 PSI); 35 MPa (5,000 PSI) for deep walls or chloride exposure | ACI 318 Table 19.3.2 |
| Maximum w/c ratio | 0.45 for W1 exposure; 0.40 for W2 (chloride contact) | ACI 318 Table 19.3.2 |
| SCM recommendation | 25–50% slag or 5–8% silica fume for reduced permeability | ACI 350 / ACI 318 commentary |
| Air entrainment | Required for freeze-thaw zones above frost line | ACI 318 §19.3.3 |
| Minimum cover | 50 mm (2 in) earth-contact face; 38 mm (1.5 in) interior face | ACI 318 Table 20.6.1.3.1 |
ACI 350 (Environmental Engineering Concrete Structures) is often referenced for below-grade parking walls because it addresses liquid-tightness and crack control more stringently than ACI 318 alone. ACI 350 limits crack width and requires closer rebar spacing to control through-wall cracking. For the full exposure class and w/c ratio treatment that applies to both slabs and walls, see Concrete Strength for Parking Structures.
Shrinkage and temperature steel: ACI 318 §24.4 requires minimum shrinkage and temperature reinforcement of 0.18% of gross concrete area for Grade 60 steel, distributed to both faces. For ACI 350 compliance, this increases to 0.30% minimum.
For the slab specification that pairs with these wall requirements in a below-grade parking structure, see the Parking Garage Concrete Slab reference.
Waterproofing Systems
The concrete wall is a structural element, not a waterproofing element. Concrete cracks, construction joints leak, and the permeability of even low w/c concrete is insufficient to prevent moisture infiltration at depth over a 50-year service life. A dedicated waterproofing system is required.
Positive-side waterproofing (applied to earth-contact face):
| System | Material | Thickness | Advantages | Limitations |
|---|---|---|---|---|
| Sheet membrane (HDPE/TPO composite) | Factory-manufactured sheets, adhesive or heat-welded | 1.0–1.5 mm (40–60 mil) | Consistent thickness, field-verifiable seams | Requires protection board; puncture risk during backfill |
| Bentonite panels | Sodium bentonite clay between geotextile layers | 5–6 mm panel | Self-healing (bentonite swells when wet); simple installation | Does not perform in high-salt groundwater; ineffective if it dries before hydrating |
| Fluid-applied membrane | Spray or roller-applied rubberized asphalt or polyurethane | 2–3 mm DFT | Seamless; conforms to complex geometry | Application quality is weather-sensitive; requires skilled applicator |
Drainage board: Installed outboard of the membrane, a dimpled drainage board (HDPE) provides both protection for the membrane during backfill and a drainage path for groundwater to flow down to the footing drain rather than building hydrostatic pressure against the wall.
Waterstop at construction joints: All horizontal and vertical construction joints in below-grade walls require a waterstop (PVC or hydrophilic rubber) cast into the joint. Construction joints are the primary leakage pathway in below-grade concrete — the waterstop creates a physical barrier within the joint.
Interior drainage: Even with positive-side waterproofing, many specifications include an interior sub-slab drainage system and sump pump as redundancy. For structures below the permanent water table, this redundancy is standard practice, not optional.
ACI and IBC References
| Reference | Scope | Key Provisions for Underground Parking Walls |
|---|---|---|
| ACI 318-19 Ch. 11 | Walls — structural design | Minimum thickness, reinforcement, slenderness limits |
| ACI 318-19 Ch. 19–20 | Durability and cover | Exposure class, w/c ratio, cover requirements |
| ACI 350-20 | Environmental concrete structures | Crack control, liquid-tightness, shrinkage reinforcement |
| ACI 546R | Concrete repair | Repair of below-grade wall deterioration |
| IBC 1807 | Foundation walls | Minimum thickness by unbalanced backfill height |
| IBC 1610 | Soil lateral loads | At-rest and active pressure for design |
IBC 1807.1.5 (Plain concrete foundation walls) permits 190 mm (7.5 in) minimum for walls up to 2.1 m (7 ft) unbalanced backfill in specific soil conditions — but this provision applies to residential foundation walls, not parking structures. Parking structure retaining walls are reinforced concrete designed per ACI 318 Chapter 11.
Seismic Considerations
In Seismic Design Categories D through F, below-grade retaining walls must resist seismic earth pressure increments in addition to static at-rest pressure. The Mononobe-Okabe method or simplified ASCE 7 provisions add a seismic pressure increment:
Δp_seismic ≈ 0.3–0.5 × Ka × γ × H (varies by seismic coefficient and wall geometry)
This increment can increase the total lateral demand by 20–40% in high-seismic zones, which directly affects wall thickness and reinforcement. Additionally:
- Walls must develop ductile flexural behavior (ACI 318 Ch. 18 provisions may apply)
- Construction joints require additional doweling for seismic shear transfer
- The connection between the retaining wall and the floor diaphragm is a critical seismic load path — inadequate connections have been a failure mode in past earthquakes
For structures in Seismic Design Category C or higher, the structural engineer of record should evaluate the wall for seismic earth pressure per ASCE 7 §11.8 and the project-specific seismic hazard analysis.
