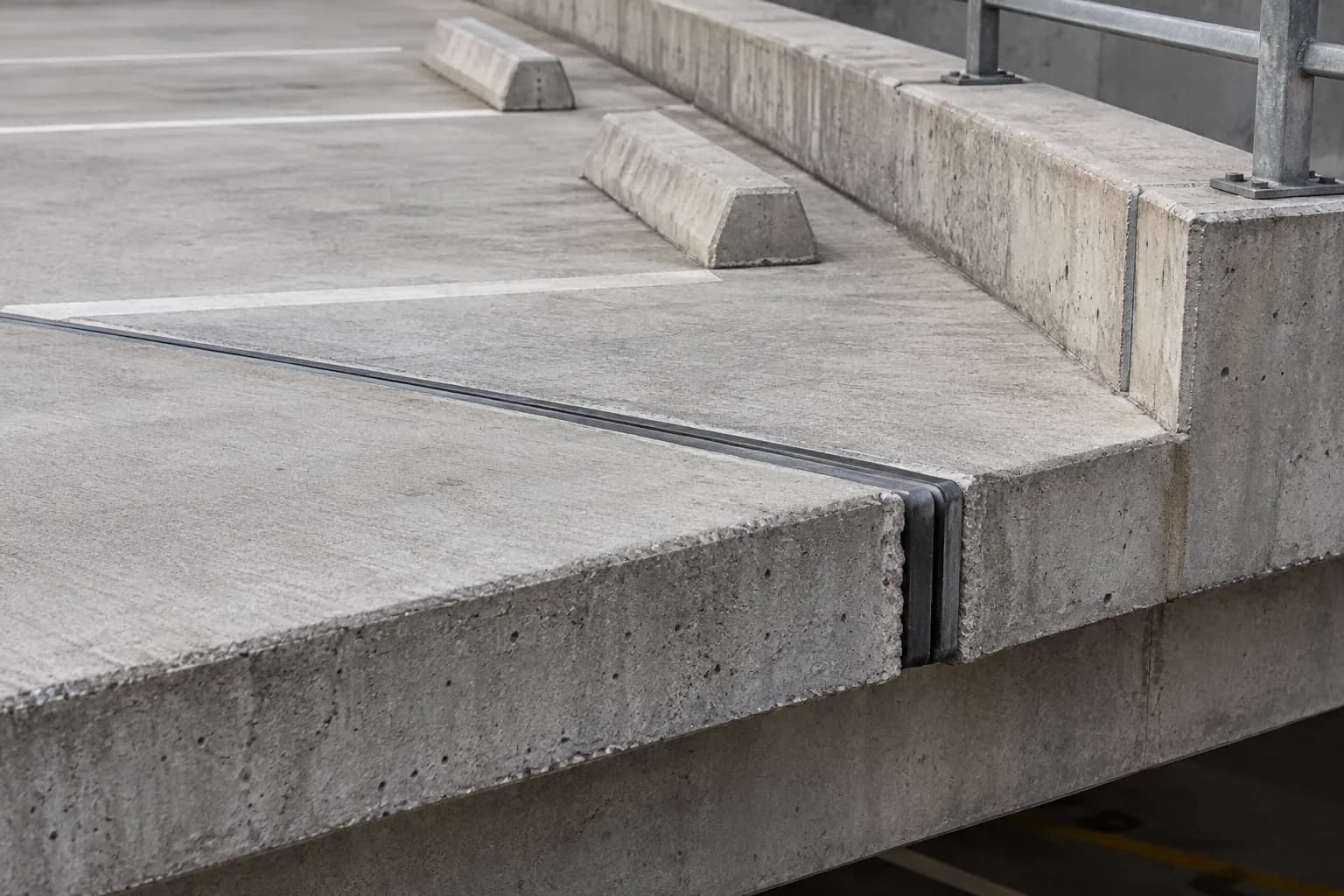

Parking Garage Slab Thickness by Load Class
Parking garage slab thickness is driven by load class, not just convention. The difference between a passenger-vehicle slab and a delivery-access or fire apparatus lane can be 50–100 mm (2–4 inches) of additional concrete — and the reinforcement specification changes with it.
Slab thickness in parking structures is a structural variable, not a convention. The governing failure mode for ground-level parking slabs is not simply bending — it's a combination of point load capacity (tire contact pressure), fatigue from dynamic loading (moving vehicles create impact loads higher than static vehicle weight), and long-term settlement under repeated load cycling.
Key design inputs that vary by load class:
- Wheel load and tire contact area — A fire apparatus axle load can be 10–18 tonnes (22,000–40,000 lbs) vs. 1–2 tonnes per axle for a passenger vehicle
- Dynamic load factor — Vehicle dynamic loading adds 25–50% to the effective static load for design purposes under ACI 360R
- Point load distribution — Dual-tire axles on trucks distribute load over a wider area, partially offsetting higher gross loads
- Subgrade modulus sensitivity — Heavier vehicles are more sensitive to subgrade variability; thin slabs over soft subgrades fail quickly under heavy loading
The thickness values below are minimum code floors. Geotechnical conditions, compressive strength, and subbase preparation can influence the final specified thickness up or down. For all elevated deck configurations, a structural engineer of record is required.
Load Classification
| Load Class | Representative Vehicles | Typical Axle Load | GVW |
|---|---|---|---|
| Class 1 — Passenger | Passenger cars, SUVs | 8–12 kN (1,800–2,700 lbs) | Up to 3,000 kg (6,600 lbs) |
| Class 2 — Light Commercial | Pickup trucks, light vans, cargo vans | 12–22 kN (2,700–5,000 lbs) | Up to 5,000 kg (11,000 lbs) |
| Class 3 — Delivery / Service | Box trucks, delivery trucks | 45–90 kN (10,000–20,000 lbs) per axle | Up to 15,000 kg (33,000 lbs) |
| Class 4 — Fire Apparatus | Pumper, aerial ladder trucks | 90–180 kN (20,000–40,000 lbs) per axle | 18,000–36,000 kg (40,000–80,000 lbs) |
Minimum Slab Thickness by Load Class
Thicknesses reference ACI 360R (Design of Slabs-on-Ground) and ASCE 7 loading. Values assume minimum 100 mm (4 in) compacted granular subbase and subgrade modulus ≥ 27 MPa/m (100 pci). Softer subgrade conditions require thickness increase.
| Load Class | Without Post-Tension | With Post-Tension | Notes |
|---|---|---|---|
| Class 1 — Passenger | 150 mm (6 in) | 125–150 mm (5–6 in) | 150 mm is standard commercial minimum even in PT designs |
| Class 2 — Light Commercial | 150–175 mm (6–7 in) | 125–150 mm (5–6 in) | Mixed-use parking (passenger + light commercial) → use Class 2 throughout |
| Class 3 — Delivery / Service | 175–225 mm (7–9 in) | 150–175 mm (6–7 in) | Designated delivery lanes within parking structures |
| Class 4 — Fire Apparatus | 225–300 mm (9–12 in) | 200–250 mm (8–10 in) | Fire access lanes, hose connection zones, apparatus bays |
Mixed-use rule: Where a parking level accommodates multiple load classes (e.g., delivery access sharing the passenger vehicle deck), use the thicker specification for the entire deck or for clearly defined lane zones with proper transition detailing.
Reinforcement Implications by Load Class
Rebar sizing and spacing scale with load class. The following applies to ground-level slabs-on-grade. Elevated deck reinforcement is governed by structural design.
| Load Class | Bar Size (Grade 60) | Spacing | Cover (Top) | Cover (Bottom) | Temperature Steel |
|---|---|---|---|---|---|
| Class 1 | #4 | 300 mm (12 in) o.c. e.w. | 50 mm (2 in) | 75 mm (3 in) | #4 @ 450 mm (18 in) perp. |
| Class 2 | #5 | 300 mm (12 in) o.c. e.w. | 50 mm (2 in) | 75 mm (3 in) | #4 @ 300 mm (12 in) perp. |
| Class 3 | #5 | 250 mm (10 in) o.c. e.w. | 50 mm (2 in) | 75 mm (3 in) | #5 @ 300 mm (12 in) perp. |
| Class 4 | #6 | 250–300 mm (10–12 in) o.c. e.w. | 50 mm (2 in) | 75 mm (3 in) | #5 @ 300 mm (12 in) perp. |
Epoxy-coated bars required in deicing salt environments (C2 exposure class). See Concrete Strength for Parking Structures for exposure class treatment.
Transition Zones
Transition zones — ramps, entry aisles, loading dock approaches — are the highest-stress locations in a parking structure. Vehicles accelerate, decelerate, and turn, creating dynamic loads and lateral forces not present in static parking bays.
Specification increases at transition zones:
| Zone Type | Thickness Increase | Rebar Adjustment |
|---|---|---|
| Vehicle ramp (grade change) | +25–50 mm (1–2 in) above adjacent level spec | Increase rebar one size or reduce spacing 25% |
| Entry/exit aisle (turn zone) | +25 mm (1 in) minimum | Standard reinforcement adequate |
| Loading dock approach | Match Class 3 or 4 as applicable | Haunch at dock edge if possible |
| Transition from slab-on-grade to elevated deck | Structural engineer design | Continuous reinforcement through transition |
Joint spacing should also be reduced 15–20% in ramp zones relative to the adjacent flat deck specification. Ramps experience higher thermal gradient effects due to greater surface-to-volume exposure.
Slab-on-Grade vs. Elevated Deck Thickness Differences
The same load class requires significantly more engineering consideration on an elevated deck than on grade:
| Parameter | Slab-on-Grade | Elevated Deck |
|---|---|---|
| Load path | Directly to compacted subgrade | Through structural system to columns/walls |
| Governing failure mode | Punching shear at local loads, differential settlement | Two-way flexure, punching shear at columns, fatigue |
| Thickness range (Class 1) | 150 mm (6 in) | 200–225 mm (8–9 in) |
| Thickness range (Class 3) | 200–225 mm (8–9 in) | 225–275 mm (9–11 in) |
| Post-tensioning applicability | Optional | Common, often economical |
| Structural engineer required | Not for single-story SOG | Always |
Full treatment of elevated deck structural systems: Multi-Deck vs Ground Level Parking Slabs.
Common Spec Violations and Premature Failure
Thickness-related failures in parking structures share common root causes:
Under-specified thickness for actual load class. A parking structure accepting delivery trucks on a passenger-vehicle slab specification will show fatigue cracking in delivery lanes within 3–7 years. The fix requires full-depth repair or replacement of affected areas — far more expensive than the marginal upfront cost of the correct specification.
Uniform thickness on mixed-use decks. Specifying a single thickness across a deck that has both passenger parking bays and delivery access lanes results in either over-spec in the parking bays or under-spec in the delivery lanes. Zone the specification.
Inadequate subbase preparation. A 200 mm (8 in) slab on a soft, variable subgrade behaves like a thinner slab on a good subbase. Compaction testing (Proctor, minimum 95% modified) and proof-roll observation before concrete placement are required for compliant work.
Ignoring ramp transition zones. Standard deck thickness run straight through ramp geometry is the most common location for early-age cracking and long-term delamination in parking structures.
Related Calculators
Use the Concrete Slab Calculator for volume and material estimation once thickness is established. For residential garage floor sizing context, see Garage Floor Thickness and 4 vs 6 Inch Concrete Slab.
