Post-Tensioned Parking Garage Slabs: Design, Thickness, and Repair

Post-tensioning applies a permanent compressive force to the concrete slab through high-strength steel strands tensioned after the concrete has cured. This compressive prestress offsets the tensile stresses caused by vehicle loading, self-weight, and thermal cycling. The result: thinner slabs, longer spans, and reduced cracking compared to conventionally reinforced concrete.

For parking structures specifically, PT is advantageous because:

Longer spans (10–12 m) reduce the number of columns and create more efficient parking layouts
Thinner slabs reduce building height per level, which matters for zoning height limits and construction cost
Reduced cracking means fewer pathways for deicing salt infiltration, improving long-term durability
Flat soffit (no beams) simplifies MEP routing and drainage installation

The trade-off is repair complexity. Every concrete repair on a PT slab requires locating the tendons first — and cutting a tendon by accident can have structural consequences.

PT vs RC Comparison

Parameter	Conventionally Reinforced (RC)	Post-Tensioned (PT)
Typical thickness (passenger loads)	200–250 mm (8–10 in)	175–200 mm (7–8 in)
Maximum practical span	6–8 m (20–26 ft)	10–12 m (33–40 ft)
Typical column grid	8 m × 8 m (26 ft × 26 ft)	10 m × 10 m (33 ft × 33 ft)
Concrete volume per level	Higher (thicker slab + beams)	Lower (thinner slab, no beams)
Cracking under service loads	Expected; controlled by rebar and joints	Minimal; prestress keeps slab in compression
Control joint requirement	4.5–6 m (15–20 ft) spacing	Continuous (PT controls cracking); joints at pour strips and structural joints only
Construction speed	Moderate	Faster per floor (flat formwork, less rebar congestion)
Initial construction cost	Baseline	+5–15%
Repair complexity	Standard (saw-cut, remove, replace)	Specialist (GPR scan, tendon avoidance, re-stressing if cut)
Repair cost per event	Baseline	+30–60% premium for specialist work
Typical service life	40–50+ years with maintenance	50+ years with maintenance (less cracking, fewer salt pathways)

When RC is preferred over PT:

Low-rise structures (1–2 levels) where PT cost premium exceeds span benefit
Structures with very short spans (< 7 m) where PT provides no meaningful advantage
Regions without qualified PT contractors
Owner preference for simpler future repair capability

For the full structural system comparison including one-way slabs, flat plates, and PT options, see Multi-Deck vs Ground Level Parking Slabs.

PT Flat Plate Design Parameters

Effective prestress. The residual compressive stress in the concrete after all losses (elastic shortening, creep, shrinkage, relaxation, friction, anchor set). Typical effective prestress for parking structure PT flat plates:

0.9–1.4 MPa (125–200 psi) average precompression across the slab section
This is below the concrete's tensile capacity, so the slab remains in net compression under sustained dead load

Tendon profile. Unbonded monostrand tendons (12.7 mm / 0.5 in diameter, Grade 270 ksi) are draped in a parabolic profile:

High point at midspan (maximum eccentricity below the slab centroid for positive moment resistance)
Low point over columns (maximum eccentricity above the centroid for negative moment resistance)
The drape provides a balanced load that partially offsets the slab dead load

Minimum concrete strength:

25 MPa (3,600 PSI) at time of stressing (typically 3–7 days)
35 MPa (5,000 PSI) at 28 days for durability per ACI 362.1R
Many specifications target 41 MPa (6,000 PSI) for elevated decks with silica fume

Banded vs uniform tendon distribution:

Banded: Tendons concentrated in a narrow band along column lines in one direction. Efficient for flexure but concentrates anchorage forces.
Uniform: Tendons distributed evenly across the slab width in the perpendicular direction. Better for punching shear contribution.
Typical practice: Banded in one direction, uniform in the perpendicular direction. This is the standard layout for PT flat plate parking structures.

Thickness and Strength

PT allows thinner slabs because the prestress reduces or eliminates the net tensile stress in the concrete:

Span	PT Slab Thickness	Equivalent RC Thickness	Thickness Reduction
7–8 m (23–26 ft)	175 mm (7 in)	200–225 mm (8–9 in)	15–20%
9–10 m (30–33 ft)	200 mm (8 in)	250 mm (10 in)	20%
11–12 m (36–40 ft)	225 mm (9 in)	275–300 mm (11–12 in)	20–25%

Minimum 35 MPa (5,000 PSI) is non-negotiable for PT parking structures. Higher strength serves three purposes:

Provides adequate bearing strength at anchorage zones where concentrated forces transfer from tendons to concrete
Reduces creep losses (higher-modulus concrete creeps less), preserving more of the initial prestress force
Satisfies ACI 318 durability requirements for F2/C2 exposure class

w/c ratio: Maximum 0.40 for elevated decks; 0.38 is common with silica fume addition for enhanced durability and reduced chloride permeability.

To generate preliminary PT slab thickness and concrete grade by garage type and exposure class, use the Parking Garage Spec Calculator.

Punching Shear at Columns

Punching shear is the critical design check for PT flat plate parking structures. The slab-column connection must transfer all gravity loads and unbalanced moments through the concrete section around the column perimeter.

Why punching shear is critical in PT:

PT flat plates have no beams — all load transfer occurs through the slab at the column
Thinner PT slabs have less concrete area to resist shear
Column-free spans create larger tributary areas, increasing the shear demand per column

ACI 318 §22.6 governs punching shear design. Key provisions:

Critical section is located at d/2 from the column face (where d is the effective slab depth)
Concrete shear strength (Vc) is a function of f'c, slab depth, column perimeter, and the ratio of long to short column dimensions
PT contribution: the vertical component of draped tendons passing through the critical section adds to the shear capacity

Shear reinforcement options when Vc is insufficient:

Stud rails (headed shear studs): Most common in PT parking structures. Shop-fabricated assemblies welded to a rail, placed radially around columns. ACI 318 §22.6.8.
Stirrup cages: Closed-loop stirrups around the column. More congested than stud rails; less common in PT flat plates.
Drop panels: Thickened slab zones at columns that increase the effective depth. Adds formwork complexity but avoids shear reinforcement.

Punching shear failure is a brittle, sudden collapse mechanism with minimal warning. It is the failure mode that structural engineers designing PT parking structures spend the most effort preventing. Progressive collapse provisions (ACI 318 §8.7.4.2) require bottom reinforcement through the column to provide a backup load path if punching occurs.

Tendon Layout and Anchorage

Tendon types in parking structures:

Unbonded monostrand: 12.7 mm (0.5 in) seven-wire strand, Grade 1860 MPa (270 ksi), individually greased and sheathed in plastic. Standard for North American parking structures.
Bonded multi-strand (less common in parking): Multiple strands in a duct, grouted after stressing. More common in bridges and international practice.

Layout:

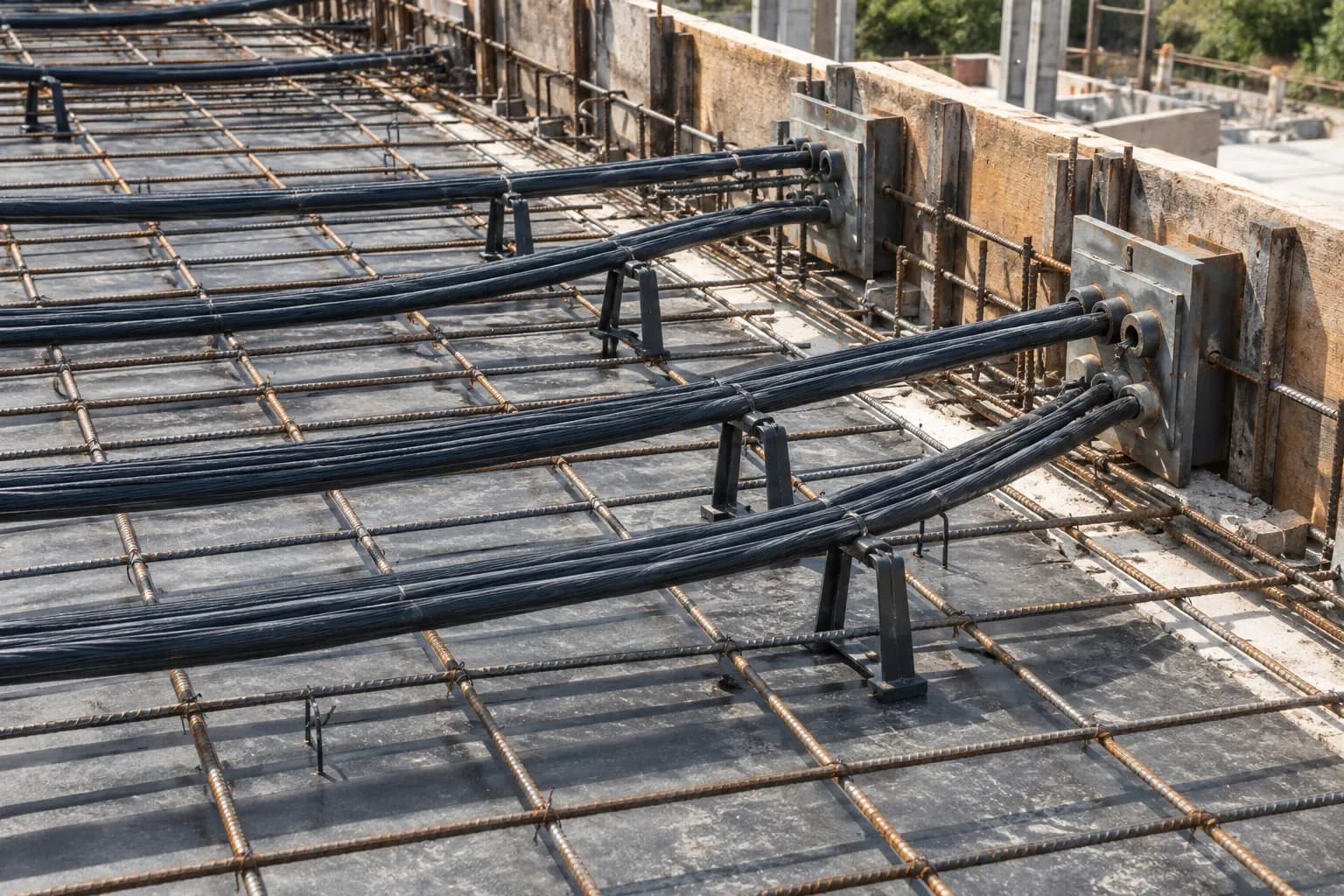

Tendons are placed in the formwork before concrete placement
Banded tendons run in one direction (typically the long span), concentrated over column lines
Uniform tendons run perpendicular, distributed evenly across the slab

Anchorage:

Live-end anchors: located at the slab edge where tendons are stressed using a hydraulic jack
Dead-end anchors: embedded in the concrete at the opposite slab edge
Anchorage pockets: recessed areas at the slab edge where the stressing jack grips the strand. After stressing, the strand tail is cut and the pocket is grouted flush.
Intermediate anchors: used at construction joints (pour strips) where continuous tendons are not practical

Stressing sequence:

Concrete reaches minimum stressing strength (25 MPa / 3,600 PSI), verified by cylinder break or maturity method
Tendons are stressed to 0.80 fpu (1,490 MPa / 216 ksi) initial stress
Elongation is measured and compared to calculated elongation (±7% tolerance per ACI 318)
Strand tails are cut and anchorage pockets are grouted
Pour strips between stressing stages are cast

Special inspection (IBC §1705.3): Post-tensioning operations require special inspection by a qualified inspector for tendon placement, stressing force, elongation verification, and grouting of anchorage pockets.

Repair Complexity

PT structures require fundamentally different repair procedures than RC structures. The primary difference: you cannot saw-cut a PT slab without first locating every tendon in the repair area.

Ground-penetrating radar (GPR) scanning:

Required before any saw-cutting, coring, or demolition on a PT slab
GPR identifies tendon locations, depth, and spacing
Typical cost: $2–5/m² ($0.20–0.50/ft²) for the scan area
Must be performed by an operator experienced with PT structures — misidentification of tendons as rebar (or vice versa) is a serious error

What happens if a tendon is cut:

The strand retracts toward its anchor under high prestress force (up to 180 kN / 40 kips per strand)
The local slab zone loses prestress, increasing cracking and deflection
Adjacent tendons may become overloaded
Structural engineer assessment is required before any repair proceeds
Tendon re-stressing or supplemental reinforcement may be needed
A single inadvertent tendon cut can cost $5,000–15,000 to remediate

Repair procedure for PT slabs:

GPR scan the repair area plus a 1 m (3 ft) border
Mark all tendon locations on the slab surface
Saw-cut perimeter to a depth that avoids tendons (typically 50–75% of slab depth, with tendon locations verified)
Remove deteriorated concrete by hydrodemolition (preferred — will not damage tendons) or careful mechanical removal
Treat exposed rebar and verify tendon condition
Place repair material (same specification as RC repair, per Parking Garage Concrete Repair)
For full-depth repairs through the slab, temporary shoring is required to support the slab during repair

Cost premium: PT repair typically costs 30–60% more per square meter than equivalent RC repair, primarily due to GPR scanning, specialist contractor requirements, and slower, more careful demolition procedures.

Facility manager implication: When budgeting for long-term maintenance of a PT parking structure, the per-event repair cost is higher but the frequency of repair events should be lower (due to reduced cracking and fewer salt infiltration pathways). Life-cycle cost analysis should account for both the reduced repair frequency and the increased per-repair cost.

Use the Concrete Slab Calculator for volume estimation once PT slab thickness is established. For column sizing under PT slab loads, the Concrete Column Calculator provides preliminary reference. For material cost estimation, the Concrete Cost Calculator converts volume to placement cost.
