Foundation Cracks: Orientation-Based Diagnosis, Repair & Prevention Guide

What Are Foundation Cracks?

Foundation cracks are fractures that develop in poured concrete walls, concrete block (CMU) walls, slab-on-grade foundations, and basement floors. They are extremely common — the Portland Cement Association (PCA) estimates that virtually every poured concrete foundation develops at least one crack within the first few years. The critical question is never whether a foundation will crack, but what the crack pattern tells you about the forces acting on the structure.

Foundations experience a unique combination of stresses that other concrete elements do not. A foundation wall simultaneously resists vertical loads from the structure above (dead load and live load), lateral soil pressure from the backfill outside, hydrostatic water pressure when the soil is saturated, and internal stresses from concrete shrinkage and thermal expansion. The specific stress that dominates determines the crack pattern — and the crack pattern, in turn, reveals the cause.

Foundation Types and Cracking Behavior

Poured concrete foundations are monolithic walls, typically 8 to 10 inches thick, formed and placed as a single unit. Cracks in poured walls tend to run as clean, well-defined lines because the concrete has uniform strength in all directions. Vertical shrinkage cracks are extremely common and almost always benign. Horizontal cracks indicate lateral pressure failure and are always serious.

Concrete block (CMU) foundations are built from individual masonry units bonded with mortar. Cracks in block walls preferentially follow the mortar joints — the weakest plane in the assembly — producing the characteristic stair-step pattern. Because block walls have lower tensile strength than poured walls (especially at the mortar joints), they are more vulnerable to lateral pressure and settlement.

Slab-on-grade foundations sit directly on the ground with no basement or crawl space. Cracks in slab foundations typically result from soil movement beneath the slab — settlement, expansive clay heave, or frost action. The crack patterns mirror those in flatwork slabs (settlement cracks, shrinkage cracks) but carry greater consequence because the slab supports the building structure.

Why Orientation Is the Best Diagnostic

Every force acting on a foundation produces a predictable crack orientation. Vertical cracks align with shrinkage and minor settlement. Horizontal cracks align with lateral soil pressure. Diagonal cracks align with differential settlement and shear forces. Stair-step cracks in block walls follow the weakest path (mortar joints) under settlement or pressure.

This is why orientation is the first and most important observation when evaluating a foundation crack. A homeowner who can identify the crack direction has already narrowed the probable cause to one or two mechanisms — before measuring width, checking displacement, or calling a professional.

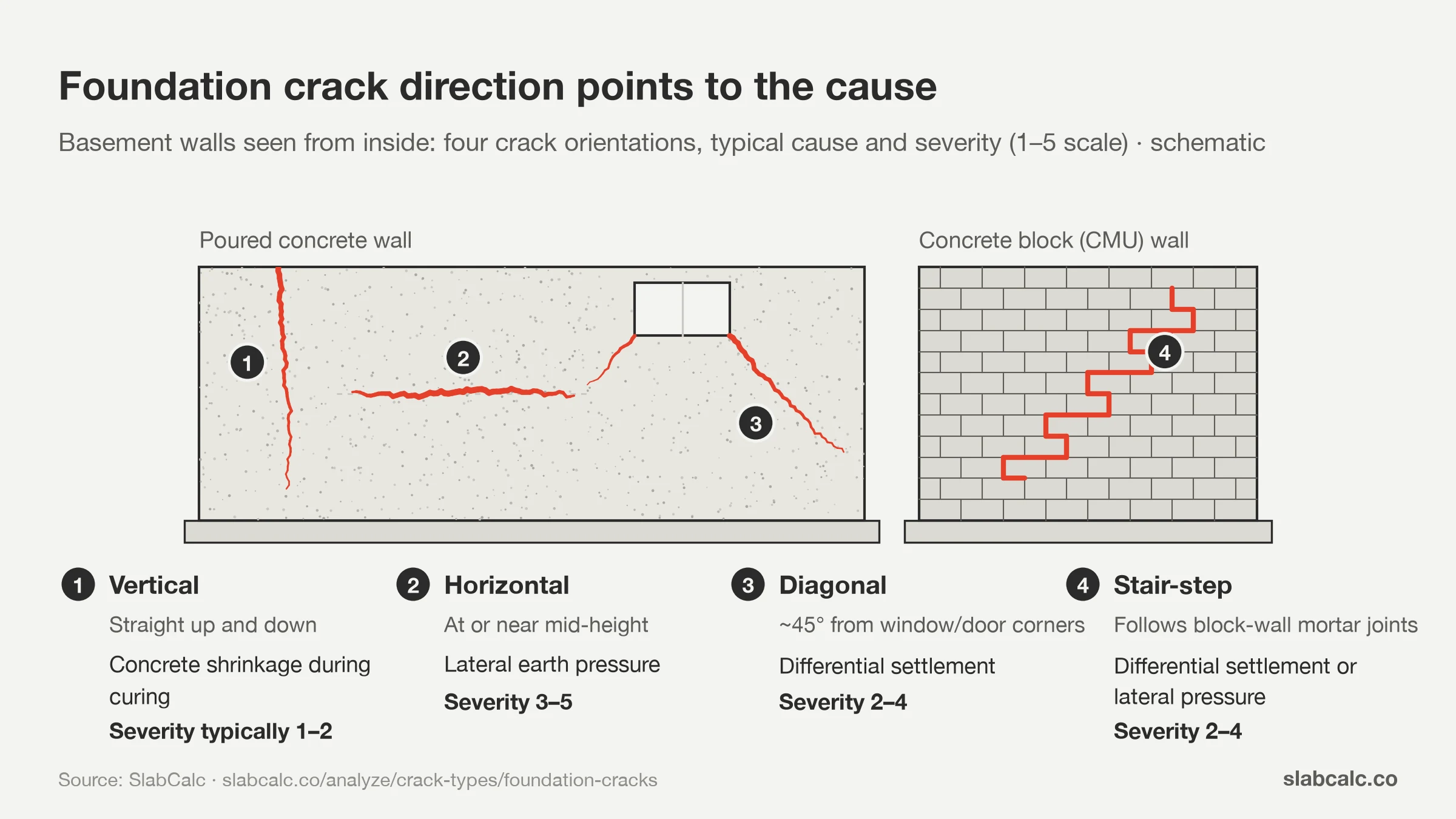

Crack Orientation Diagnostic

This section is the core of this guide. Each orientation maps to a specific failure mechanism, severity range, and repair approach.

Vertical Cracks

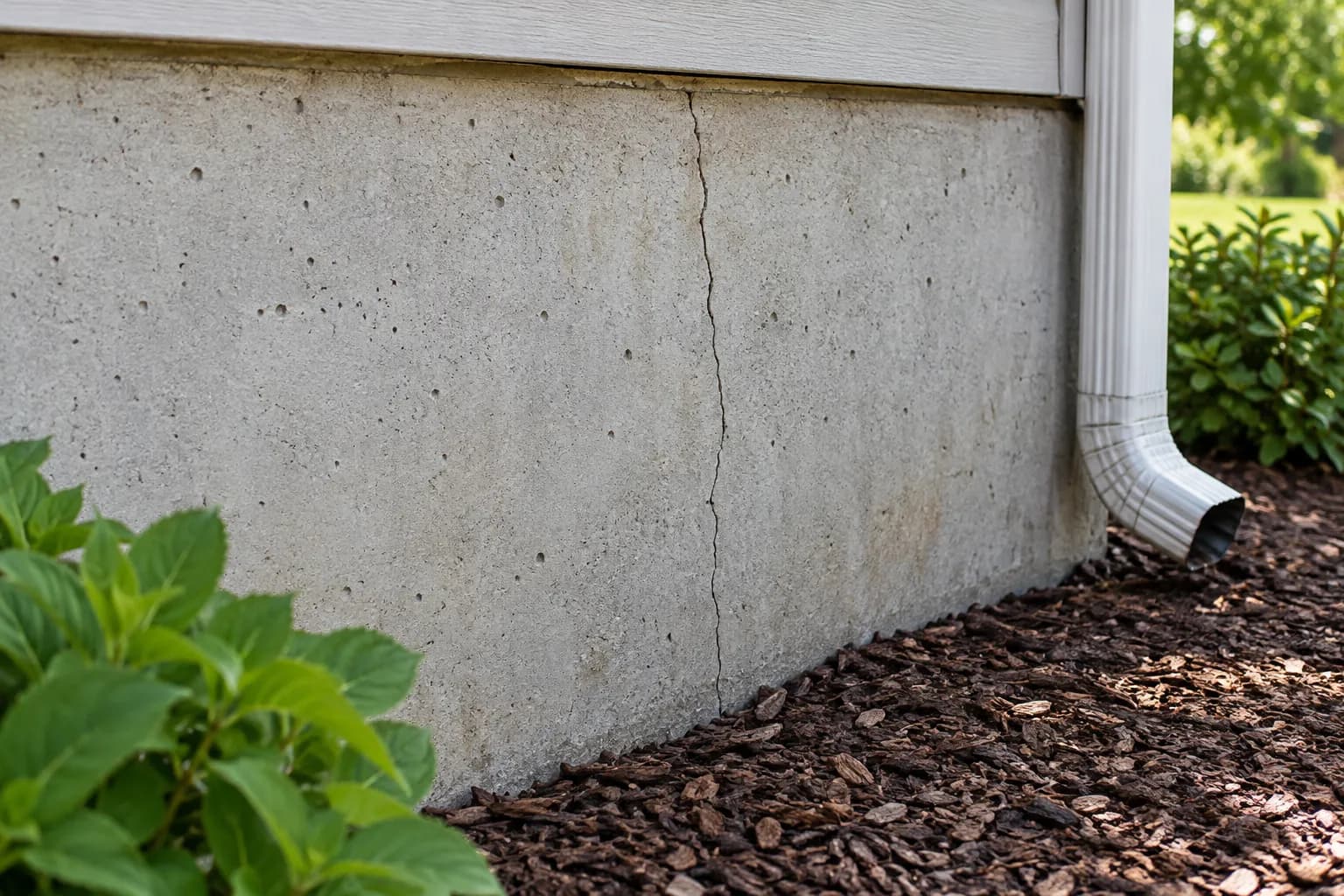

Vertical cracks run straight up and down (or within about 30 degrees of vertical) in foundation walls. They are the most common foundation crack type by a wide margin.

Cause: Concrete shrinkage during curing is the dominant cause. As concrete loses moisture and contracts, it develops internal tensile stress. Foundation walls are restrained at the footing and at the top by the floor structure, so shrinkage stress concentrates at the weakest points — typically near the midspan of long walls, at changes in wall thickness, or near openings (windows, pipe penetrations). Minor settlement can also produce vertical cracks, but with the key difference that settlement cracks show displacement while shrinkage cracks do not.

Severity: Typically 1–2 (cosmetic) when narrow and without displacement. A vertical crack under 1/8 inch wide with level edges on both sides is almost certainly shrinkage and is not a structural concern. Vertical cracks wider than 1/4 inch, or those showing displacement, should be evaluated professionally — they may indicate settlement rather than pure shrinkage.

Repair: Seal against water with hydraulic cement, polyurethane caulk, or epoxy injection. This is the one foundation crack type appropriate for DIY repair when conditions are met (under 1/8 inch, no displacement, no water entry under pressure).

Key internal link: Shrinkage cracking guide — vertical foundation cracks share the same mechanism as flatwork shrinkage cracks.

Horizontal Cracks

Horizontal cracks run across the foundation wall, typically at or near mid-height. They are the most structurally dangerous foundation crack pattern.

Cause: Lateral earth pressure. The soil backfilled against the outside of the foundation wall exerts horizontal force that pushes the wall inward. This force increases with depth and is amplified dramatically when the soil becomes saturated with water — hydrostatic pressure can double the effective lateral force. At mid-height, the bending stress from this lateral pressure reaches its maximum (similar to a beam loaded uniformly along its length), and the concrete cracks in tension on the interior face.

The situation is especially dangerous because once the wall cracks and begins to bow inward, the lateral pressure becomes more effective (the wall is no longer straight and rigid), creating a positive feedback loop that accelerates failure. ACI 318 and the International Building Code (IBC) specify minimum wall thickness, reinforcement, and backfill height limits to prevent this failure mode — but older construction often predates these requirements.

Severity: 3–5. Any horizontal crack in a foundation wall is severity 3 at minimum. Horizontal cracks with visible inward bowing (check with a long straightedge held vertically against the wall) are severity 4–5 and require urgent professional intervention. Inward deflection exceeding 1 inch is a serious structural emergency.

Repair: Carbon fiber reinforcement straps bonded to the interior face of the wall ($400–$800 per strap, typically 5–10 straps per wall), steel I-beam braces bolted between the floor slab and the floor joists above, or in severe cases, wall replacement with proper drainage and waterproofing. The root cause — soil pressure — must also be addressed: improve drainage, reduce surcharge loads on the soil above the wall, and consider exterior waterproofing with a drainage board.

Key internal link: Structural cracking guide — horizontal foundation cracks are a subset of structural cracking caused by lateral pressure.

Diagonal Cracks

Diagonal cracks run at roughly 45 degrees, most commonly radiating from the corners of windows, doors, and other openings in the foundation wall.

Cause: Differential settlement — one section of the foundation is settling more than an adjacent section. The uneven downward movement creates shear stress in the wall, and shear cracks propagate at approximately 45 degrees (following the principal stress trajectory). Diagonal cracks from window and door corners are especially diagnostic because the opening creates a stress concentration — the wall section above the opening is a "deep beam" that cracks diagonally when one support settles.

Thermal contraction can also produce diagonal cracks, particularly in long walls where one end is restrained and the other is relatively free to move. These cracks are typically finer and more uniformly spaced than settlement-induced diagonal cracks.

Severity: 2–4. Fine diagonal cracks (under 1/8 inch, no displacement) from an old, completed settlement event may be severity 2 — monitor and seal. Wider diagonal cracks with displacement, especially if actively growing, are severity 3–4 and require engineering evaluation to determine if the settlement is ongoing.

Repair: Address the settlement cause first — improve drainage, stabilize the soil, underpin if necessary. Once the cause is resolved and the crack is stable, repair with epoxy injection (for structural bonding) or polyurethane caulk (for sealing only). Foundation underpinning with push piers or helical piers ($1,500–$3,000 per pier) may be required if settlement is active.

Key internal link: Settlement cracking guide — diagonal foundation cracks are driven by the same soil movement that causes flatwork settlement.

Stair-Step Cracks in Block Walls

Stair-step cracks follow the mortar joints in CMU (concrete block) foundation walls, zigzagging vertically and horizontally through the joints in a pattern that resembles a staircase.

Cause: Differential settlement or lateral pressure — the same forces that produce diagonal cracks in poured walls. In block construction, the mortar joints are significantly weaker than the blocks themselves (mortar tensile strength is roughly 40–80 PSI, compared to 200+ PSI for the block units). Cracks therefore follow the path of least resistance through the mortar joints rather than cutting straight through the blocks.

Severity: 2–4. Hairline stair-step cracks in an older block foundation (30+ years) that have not grown are often severity 2 — they indicate a past settlement event that has completed. Stair-step cracks that are wider than 1/4 inch at any point, show displacement between courses, or are accompanied by wall bowing are severity 3–4 and require professional assessment.

Repair: Tuckpointing (grinding out damaged mortar and replacing with fresh mortar) for cosmetic, stable cracks. Carbon fiber or steel reinforcement for structural stabilization. Wall rebuilding or replacement for severe cases with multiple displaced courses.

What Causes Foundation Cracks?

Foundation cracks result from the interaction of internal concrete properties and external forces acting on the foundation. Understanding the cause is essential because repair without addressing the root cause guarantees recurrence.

Concrete Shrinkage

Every poured concrete foundation shrinks as it cures and loses moisture. Typical drying shrinkage for a standard foundation mix (w/c = 0.45–0.50) ranges from 400–600 microstrain, translating to approximately 1/32 inch of contraction per 10 linear feet of wall. This contraction is restrained by the footing below and the structure above, generating tensile stress that produces vertical cracks at predictable intervals. Shrinkage cracks typically appear within the first year and stabilize once the concrete reaches its equilibrium moisture content.

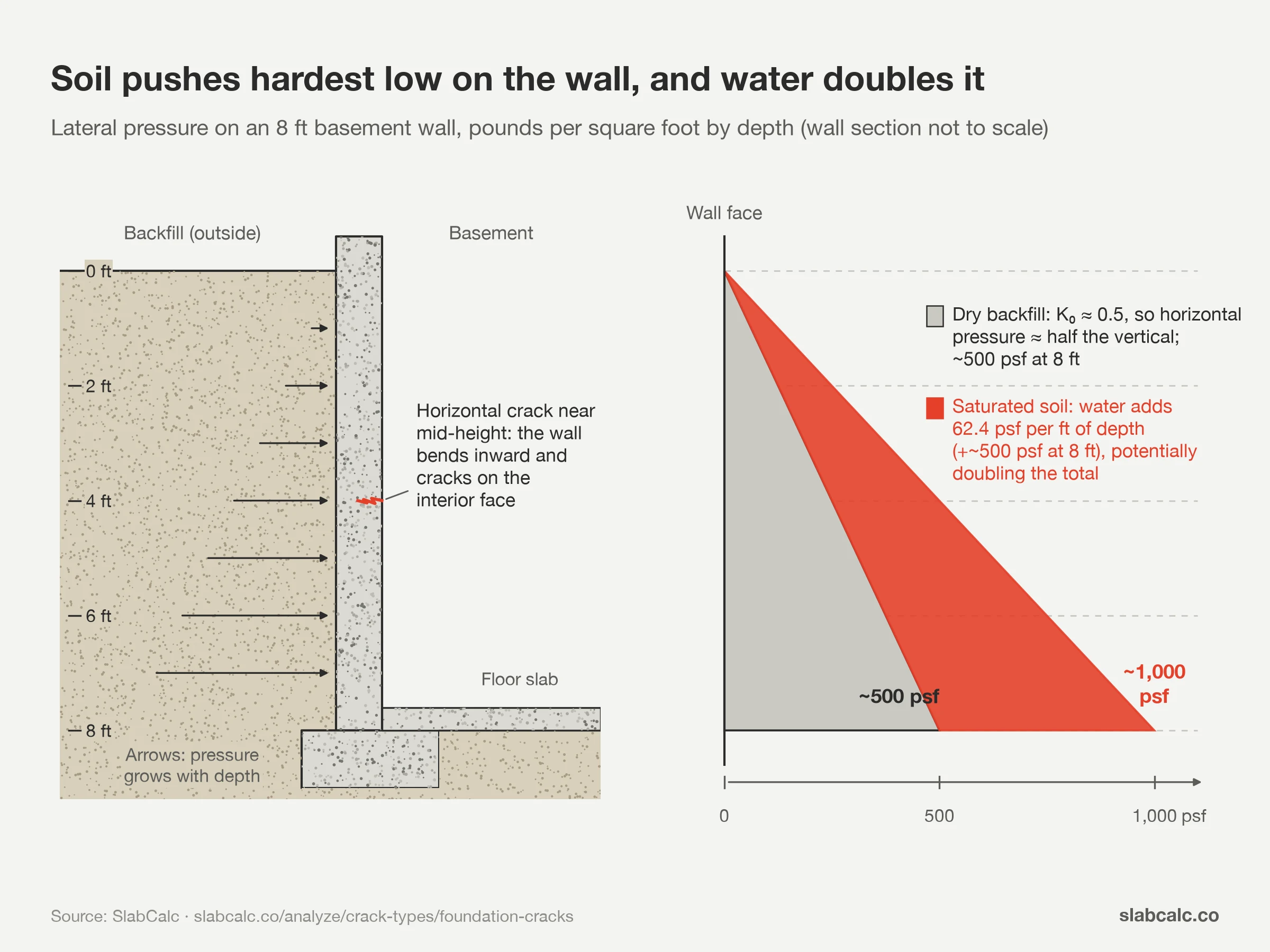

Lateral Soil Pressure

The soil backfilled against a foundation wall exerts lateral pressure that increases with depth. For typical residential backfill (medium-dense granular soil), the at-rest earth pressure coefficient (K₀) is approximately 0.5, meaning the horizontal pressure is roughly half the vertical pressure. At 8 feet depth (a typical basement wall), the horizontal soil pressure is approximately 500 pounds per square foot. When the soil becomes saturated, hydrostatic pressure adds 62.4 pounds per square foot per foot of depth — potentially doubling the total lateral force on the wall.

Surcharge loads — vehicles, soil stockpiles, heavy equipment, adjacent building foundations — add further horizontal pressure. A loaded truck parked next to a basement wall can add 200+ pounds per square foot of lateral pressure to the upper portion of the wall. This is why building codes restrict heavy loads within a zone near foundation walls.

Differential Settlement

Non-uniform soil bearing causes different sections of the foundation to settle at different rates. Common causes include variable soil conditions across the building footprint (part on rock, part on fill), water erosion beneath one section, tree root decomposition, poorly compacted utility trench backfill, and adjacent excavation or construction. The Structural Engineers Association generally considers differential settlement exceeding 1/4 inch across a 10-foot span as the threshold for potential structural distress.

Frost Heave

In cold climates, water in the soil beneath or adjacent to the foundation freezes and expands, exerting upward pressure on the footing and horizontal pressure on the wall. The frost line depth — the maximum depth at which soil freezes — determines the required footing depth per the building code. Footings placed above the frost line are susceptible to annual freeze-thaw cycling that produces cumulative cracking and displacement.

Construction Defects

Premature backfilling (before the concrete has reached adequate strength), inadequate cure time, poor consolidation leaving voids in the wall, and insufficient reinforcement are all construction-phase causes of foundation cracking. These defects cannot be corrected after the fact — the resulting cracks must be evaluated and repaired based on their current condition.

Severity Assessment

Foundation crack severity depends on orientation, width, displacement, and whether the crack is active (growing) or dormant (stable).

Severity	Orientation	Width	Displacement	Activity	Recommended Action	Est. Cost
1	Vertical	< 1/16"	None	Stable	Monitor; seal if desired	$0–$50
2	Vertical or diagonal	1/16"–1/8"	None to minimal	Stable	Seal against water	$50–$200
3	Vertical, diagonal, or stair-step	1/8"–1/4"	< 1/8"	Monitor needed	Professional assessment within 30 days	$300–$800
4	Any, especially horizontal	> 1/4"	> 1/8"	Active or unknown	Structural engineer within 1 week	$1,000–$5,000
5	Horizontal with bowing, multiple displaced	Any	> 1/4"	Active	Immediate professional intervention	$5,000–$45,000

The severity table above applies specifically to foundation cracks. Note the asymmetry: a 1/4-inch vertical crack is severity 3, while a 1/8-inch horizontal crack is already severity 3–4 — because horizontal cracks indicate a fundamentally more dangerous failure mode (lateral pressure) than vertical cracks (shrinkage or minor settlement).

Active vs. dormant is a critical distinction. A dormant crack — one that formed years ago from a one-time event (initial curing shrinkage, a completed settlement) and has not grown since — is far less concerning than an active crack of the same dimensions. Crack monitors installed for 3+ months determine whether a crack is active. Active cracks of any orientation should be evaluated by a structural engineer before repair.

Full 1–5 severity scale explained →

How to Repair Foundation Cracks

Repair method selection depends on the crack type, severity, and underlying cause. The table below maps each scenario to the appropriate repair approach.

Sealing Vertical Cracks (DIY-Appropriate)

For vertical cracks under 1/8 inch with no displacement and no pressurized water entry, DIY sealing is appropriate and effective. Three common methods:

Hydraulic cement — a fast-setting cementitious product that expands slightly as it cures, creating a watertight seal. Best for cracks with active seepage (it sets in 3–5 minutes even in wet conditions). Mix a small batch to a stiff putty consistency, press into the crack with a trowel, and hold in place until it sets. Cost: $10–$15 per 10 lb container (enough for 5–10 feet of crack).

Polyurethane sealant — a flexible, waterproof caulk applied with a standard caulking gun. Best for dry cracks that may experience minor seasonal movement. Cut the nozzle to match the crack width, fill from the bottom up, and smooth flush with a putty knife. Remains flexible after curing. Cost: $8–$15 per tube.

Epoxy injection kit — a two-part structural epoxy injected into the crack through surface-mounted ports. The epoxy bonds the crack faces and restores tensile strength across the crack plane. Best for stable, dry cracks where a permanent, rigid repair is desired. Consumer kits ($30–$75) include injection ports, surface seal, and epoxy cartridges. Professional injection runs $300–$800 per crack but provides a stronger, more reliable result.

Carbon Fiber Reinforcement (Professional)

For horizontal cracks with bowing, carbon fiber straps are bonded to the interior wall face using structural epoxy. Each strap can resist 7,000–14,000 pounds of lateral force. Straps are installed vertically at 4-foot intervals along the affected wall, spanning from the footing to the top of the wall. The straps prevent further inward movement and stabilize the wall in its current position. If the wall has already bowed significantly (more than 2 inches), it may need to be straightened before reinforcement — either by excavating the exterior and pushing the wall back, or by using adjustable steel braces.

Cost: $400–$800 per strap installed. A typical 30-foot basement wall requires 7–8 straps at a total cost of $2,800–$6,400.

Foundation Underpinning (Professional)

For diagonal or stair-step cracks caused by active differential settlement, underpinning transfers the foundation load from the failing surface soil to competent bearing strata deeper underground. Push piers are hydraulically driven through brackets bolted to the footing until they reach load-bearing soil or bedrock, then the foundation is lifted back toward level using hydraulic jacks.

Cost: $1,500–$3,000 per pier. Most residential foundations requiring underpinning need 8–15 piers, for a total project cost of $12,000–$45,000. This is a permanent solution — once piers reach competent bearing, the foundation will not settle further.

Exterior Waterproofing (Professional)

When foundation cracks allow water entry, exterior waterproofing addresses the problem at its source. The process involves excavating to the footing, cleaning the wall surface, applying a waterproof membrane (rubberized asphalt or polyurethane), installing a drainage board to relieve hydrostatic pressure, and backfilling with gravel to promote drainage. An interior approach (interior drainage channel and sump pump) is less disruptive but manages water rather than preventing entry.

Cost: Exterior waterproofing runs $80–$120 per linear foot of wall, or $5,000–$15,000 for a typical basement perimeter. Interior drainage systems run $3,000–$8,000.

DIY vs. Professional

Foundation crack repair has a clear dividing line between DIY and professional territory.

DIY is appropriate if ALL of the following are true:

• The crack is vertical (not horizontal, diagonal, or stair-step)
• Width is under 1/8 inch
• No vertical displacement between the two sides
• No active water seepage under pressure
• The crack is dormant (not growing over 3+ months of monitoring)
• The foundation is not under warranty or insurance claim

Call a structural engineer if ANY of the following are true:

• The crack is horizontal (any width)
• The crack is diagonal with displacement
• Stair-step cracks wider than 1/4 inch or with displaced courses
• Any crack wider than 1/4 inch regardless of orientation
• Any crack with vertical displacement
• The wall shows bowing (check with a straightedge)
• Active water seepage under pressure through the crack
• The crack is actively growing (widening or lengthening)
• Doors or windows near the crack are sticking or misaligned
• You observe secondary indicators: drywall cracks, floor slopes, gaps at ceiling-wall junction

A structural engineer assessment costs $300–$600 and provides a written report with specific repair recommendations. This is a small investment compared to the cost of an incorrect assessment or an improperly repaired structural crack — and it provides documentation that may be required for insurance claims, real estate transactions, or building permits.

Prevention

Foundation crack prevention begins during design and construction, but ongoing maintenance — especially water management — plays an equally critical role over the life of the building.

Drainage and Grading

Water management is the single most effective long-term prevention strategy for foundation cracks. Every foundation should have:

• Perimeter grading that slopes away from the foundation at a minimum of 6 inches of fall in the first 10 feet (IRC R401.3). Re-check grading annually — landscaping and soil settling can reverse the original slope.
• Gutter downspouts extended a minimum of 4 feet (ideally 10 feet) from the foundation. Never allow downspouts to discharge directly adjacent to a foundation wall.
• Perimeter drain tile at the footing level, connected to a sump pump or daylight outlet. This is required by modern building codes for habitable basements and is the most effective defense against hydrostatic pressure.
• Window well drains connected to the perimeter drainage system to prevent water from pooling against the foundation wall at below-grade window openings.

Waterproofing Membranes

Apply a waterproof membrane to the exterior face of all below-grade foundation walls during construction. Damp-proofing (a thin asphalt coating) meets minimum code but does not bridge cracks and degrades over time. True waterproofing (rubberized asphalt, polyurethane, or sheet membrane) provides a flexible, continuous barrier that bridges hairline cracks and prevents water entry even under hydrostatic pressure.

Backfill Management

Backfill should not be placed against a foundation wall until the wall has adequate lateral support — typically, the first floor structure (floor framing or slab) must be in place. Premature backfilling is a common construction defect that can crack or displace a wall before the concrete has reached full strength.

Use granular backfill (gravel or sand) for the first 12 inches adjacent to the wall, then compacted native soil in 8-inch lifts above that. Granular material drains freely and reduces hydrostatic pressure. Clay backfill holds water and maximizes lateral pressure — the opposite of what you want.

Structural Design

Modern building codes (IBC, IRC) specify minimum foundation wall thickness, reinforcement, and backfill height limits based on soil type and lateral pressure conditions. For residential construction, the most critical design elements are minimum wall thickness of 8 inches for poured walls and 8-inch block walls (10 inches for deeper backfill), both horizontal and vertical reinforcement at code-minimum ratios, footings sized for the soil bearing capacity (typically 2,000–4,000 PSF for residential soils), and footing depth below the local frost line.

Cost Estimates

Repair Type	DIY Cost	Professional Cost	Notes
Seal vertical crack (hydraulic cement)	$10–$30	$75–$200	Per crack, interior application
Seal vertical crack (epoxy injection)	$30–$75	$300–$800	Per crack, restores tensile strength
Carbon fiber strap (per strap)	N/A	$400–$800	Professional only; 5–10 straps per wall
Basement wall stabilization (full wall)	N/A	$2,800–$6,400	Carbon fiber, typical 30-ft wall
Steel I-beam braces (per brace)	N/A	$300–$600	Alternative to carbon fiber
Foundation underpinning (per pier)	N/A	$1,500–$3,000	Push piers or helical piers
Underpinning project (full)	N/A	$12,000–$45,000	8–15 piers typical
Exterior waterproofing (per linear ft)	N/A	$80–$120	Excavation + membrane + drainage
Interior drainage system	N/A	$3,000–$8,000	Channel + sump pump
Structural engineer assessment	N/A	$300–$600	Written report with recommendations

For most homeowners, the path forward depends entirely on the crack type. Vertical hairline cracks cost $10–$75 in DIY materials. Horizontal or diagonal cracks with displacement can cost $5,000–$45,000 for complete professional remediation. The structural engineer assessment ($300–$600) is the critical first investment for any crack beyond a simple vertical hairline — it determines the scope and cost of everything that follows.

Estimate concrete costs for your area →

Key Takeaways

• Crack orientation is your best diagnostic tool. Vertical = shrinkage (usually harmless). Horizontal = lateral pressure (always serious). Diagonal = differential settlement. Stair-step = settlement or pressure through block mortar joints.
• Displacement, not width, determines structural significance. A 1/4-inch crack with level edges is less concerning than a 1/8-inch crack with one side offset. Always check for displacement by running your finger across both edges.
• Horizontal cracks are always professional territory. Any horizontal crack in a foundation wall, regardless of width, indicates lateral soil pressure and should be evaluated by a structural engineer. Do not delay.
• Only vertical hairline cracks are DIY-appropriate. Under 1/8 inch, no displacement, no pressurized water, and confirmed dormant through monitoring. Everything else requires professional assessment first.
• Address water first. Drainage and grading corrections are the most cost-effective foundation maintenance. Extending downspouts, correcting grading, and maintaining perimeter drains prevent the water-related issues that cause most foundation crack problems.
• Monitor before you repair. Install crack monitors for 3+ months to determine if a crack is active or dormant. This information is essential for both the engineer's assessment and the repair specification.
• A $300–$600 engineer assessment can save tens of thousands. Early identification and intervention for structural foundation issues is always less expensive than delayed action. When in doubt, get a professional opinion.
