Stem Wall Foundations: Sizing, Cost, and How They Differ from Slab and Basement

A stem wall is the short vertical wall, poured concrete or CMU, that sits on a footing and lifts a building's floor above grade. It is typically 6-8 inches thick and 12-30 inches tall, its footing sits below the local frost line, and a stem wall foundation costs $8-15 per square foot of footprint installed. It's the workhorse of residential foundations in any climate that experiences frost or any site that isn't perfectly flat. The footing-plus-stem-wall combination is also what most retaining walls and basement walls are built on, so understanding stem walls covers the foundation of nearly every concrete wall project.

This guide focuses on stem wall foundations specifically — the foundation type used in slab-on-grade construction with a raised floor. For pure retaining walls, the retaining wall guide covers the lateral-load case. For basement walls (a special case of stem wall extending much taller below grade), see the basement wall waterproofing guide.

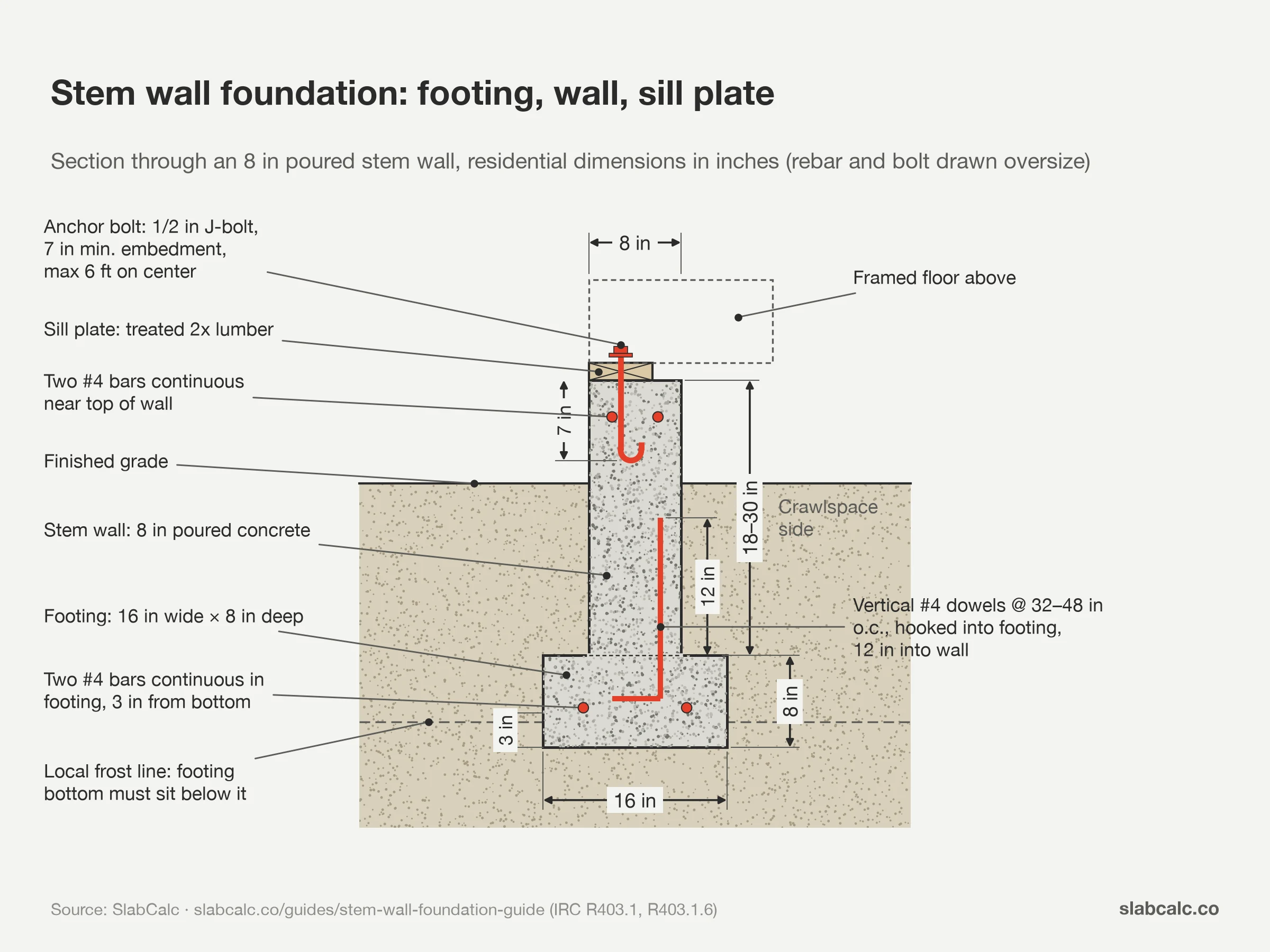

What a Stem Wall Foundation Actually Is

A stem wall foundation has three parts:

1. Footing — wider concrete strip at the base, sized to spread the load to the soil below the frost line
2. Stem wall — vertical concrete wall (or CMU) sitting on the footing, typically 12-30 in tall
3. Floor system above — wood-framed floor or slab-on-grade poured separately on top

The stem wall transitions structural loads from the framed building above to the spread footing below. Unlike a monolithic slab where the slab and footing are one continuous pour, a stem wall foundation is built sequentially: footing first, cure, then wall on top.

Stem Wall Height and Thickness at a Glance

The two numbers most people need: an 8-inch-thick poured wall is the residential default, and the top of the wall must stand at least 6 inches above finished grade (4 inches behind masonry veneer) so the sill plate and framing stay out of splash and soil contact.

Stem Wall vs Foundation Wall

The terms overlap because a stem wall is a foundation wall, just a short one. The practical difference is how much soil it holds back:

A monolithic slab has neither: its thickened edge does the footing's job in the same pour. A pier-and-beam foundation replaces the continuous stem wall with isolated piers.

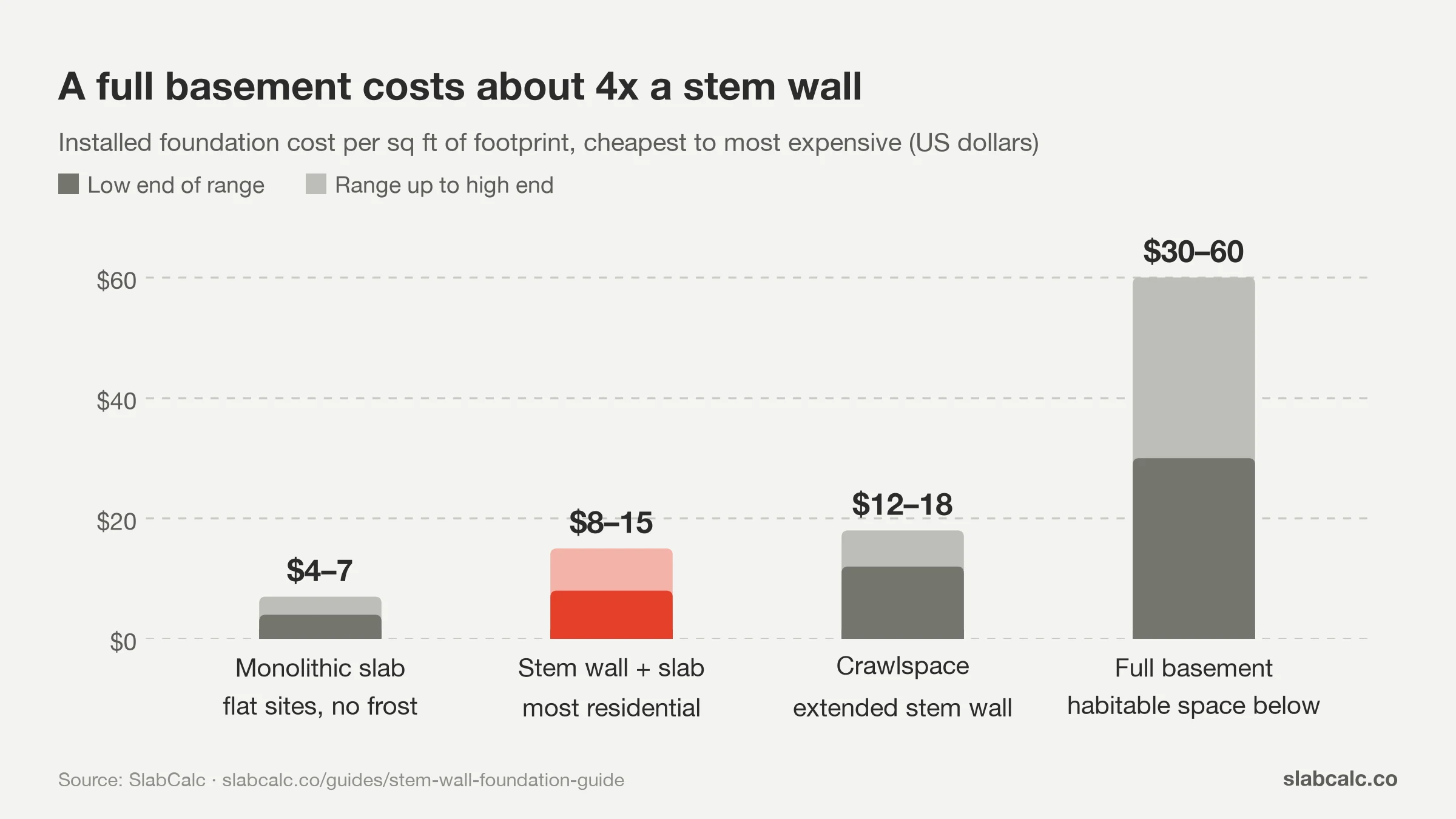

Stem Wall vs Monolithic Slab vs Basement

Three common residential foundation types, ordered cheapest to most expensive:

A stem wall foundation costs roughly twice a monolithic slab but handles 80% of residential conditions monolithic can't. The difference is small relative to total project cost (a 1,500 sq ft house adds $6,000-15,000 going from slab to stem wall) and almost always worth it for cold climates, slopes, or crawlspace access. To price your own footprint across all four types, use the concrete foundation cost calculator.

Footing Sizing

The footing carries the wall's load and spreads it across enough soil area to stay below the soil's bearing capacity. Typical residential footing sizes (a common rule of thumb for 1–2 story homes on ordinary soil; IRC R403.1.1 sets the floor at 12 in wide × 6 in thick, with Table R403.1(1) scaling width to soil bearing and stories):

The footing must extend below the local frost line. In Minnesota that's 60 inches below grade. In Florida it's 12 inches or less. Check your local code — the prescriptive frost depth governs unless engineered alternatives are submitted.

Cold-climate stem walls drive foundation cost significantly above mild-climate slabs. Compare metro foundation pricing in Detroit, Minneapolis, and Boston.

The concrete footing calculator handles standalone footing volume math by length, width, and depth.

Stem Wall Sizing

Stem wall thickness follows the same rules as the wall it's part of. For poured concrete:

• 6 in thick — adequate for short residential stem walls under 18 in tall, no significant lateral load
• 8 in thick — standard for residential, 18-30 in tall, supports framed floor above
• 10-12 in thick — required for taller walls (over 30 in) or any portion below grade more than 4 ft

For CMU stem walls, see the block wall calculator — same dimensional rules but built course by course rather than poured. A CMU stem wall uses standard 8x8x16 block; each course adds 8 inches of height, so a 24-inch stem wall is three courses. Cells that hold vertical rebar are grouted solid, and the top course is usually a bond beam (horizontal rebar in grouted U-block) that receives the anchor bolts.

Height is governed by:

• Lift above grade — typically 6-12 in to keep wood framing off the soil
• Frost depth — bottom of footing below frost line, even if that means a deep stem wall
• Site slope — stem walls step down with the slope on stepped footings; no single wall should retain more than 30 in of soil unless engineered

Rebar Placement

Standard residential reinforcement for an 8-inch stem wall:

• Two #4 bars continuous in the footing, 3 in from bottom
• Vertical #4 dowels at 32-48 in o.c., hooked into the footing and extending 12 in into the wall
• Two #4 bars continuous near the top of the wall to act as a tension band
• One #4 horizontal mid-height (optional for short walls, required for walls over 30 in)

Place vertical dowels in the footing pour at the spacing the wall will use. They should stick up at least 12 in above the footing top, ready to thread into the wall pour or block cells.

For walls supporting structures with significant lateral load (seismic zones D-F, hurricane zones), engineered drawings replace prescriptive spacing.

Stem Wall Slab: Pouring a Slab Inside the Stem Walls

The "stem wall slab" (also called slab-on-stem-wall) combines a stem wall perimeter with a concrete floor instead of a framed one. It is the usual way to get a slab house on a sloped lot or in a frost climate, where a monolithic slab's thickened edge can't reach frost depth.

1. Footing and stem wall first, with the wall top set at finished floor height (or a few inches below if the slab bears on a ledge in the wall)
2. Backfill the interior in 6-8 in lifts, compacting each one. IRC R506.2.1 limits fill under a slab to 24 in of clean sand or gravel, or 8 in of earth, unless an engineer approves more. Deeper fill is where stem wall slabs settle and crack
3. Base course: 4 in of clean gravel or crushed stone (IRC R506.2.2)
4. Vapor retarder: 6-mil polyethylene over the base under any slab below conditioned space (IRC R506.2.3); see the vapor barrier guide
5. Isolation joint: 1/2-inch expansion material against the inside face of the stem wall so the slab can move independently
6. Pour the slab: IRC R506.1 minimum is 3.5 in; 4 in is the standard residential pour

The slab itself is sized like any slab-on-grade, and the concrete slab calculator gives its volume separately from the footing and wall.

Anchor Bolts for Sill Plate

The sill plate (treated 2x lumber) sits on top of the stem wall and connects the framed structure above. Anchor bolts secure the sill plate to the wall.

IRC R403.1.6 prescriptive layout:

• 1/2 in diameter J-bolts, 7 in minimum embedment into the wall
• Spaced no more than 6 ft on center
• Within 12 in of every plate end (corners, splices)
• Two anchor bolts per plate section (no plate has fewer than two anchors)
• Embed during the wall pour with the J facing down; threaded end protrudes 2-3 in above the wall

Use stronger anchor bolts (5/8 in or threaded rod with anchor plates) for shear walls in seismic zones D and higher.

Insulation for Below-Grade Stem Wall

In northern climates, the IRC requires below-grade insulation on stem walls bordering heated spaces:

• Climate zones 4-8: rigid foam insulation on the exterior face, R-10 to R-20 depending on zone
• Apply directly to the wall before backfill, taped at seams to prevent thermal bridging
• Protect above grade with a cementitious coating, foam jacket, or termite shield in southern states (treated foam required where termite risk warrants per IRC R318)

Above-grade stem wall portions don't need insulation if the floor above is insulated.

Damp-Proofing the Below-Grade Face

Any portion of the stem wall in contact with soil should get a damp-proofing coating to prevent moisture migration into the wall. Standard options:

• Asphalt-based emulsion — cheapest, brushed or sprayed onto the exterior face
• Polymer-modified asphalt — better adhesion and longer life
• Bentonite panels or sheet membrane — used when the stem wall encloses habitable space below grade (then it's full waterproofing, not damp-proofing — see basement wall waterproofing)

Damp-proofing alone is adequate for stem walls with crawlspace or non-habitable space behind. Habitable space below grade requires full waterproofing.

Build Sequence

Standard residential stem wall foundation build order:

1. Excavate the footing trench to frost depth, clearing topsoil
2. Install rebar in the trench: two #4 longitudinal bars + vertical dowels at wall spacing
3. Pour the footing to grade or form-board top, screed flat, set anchor dowels
4. Cure 24 hours before stripping forms or starting wall work
5. Build wall forms for poured concrete or lay first course of block for CMU
6. Install vertical wall rebar, threading from footing dowels up through the wall
7. Pour wall (or build up CMU courses) — for poured, set anchor bolts at spec spacing as you finish the top
8. Cure 7 days for poured walls before applying load
9. Strip forms or tool joints as appropriate
10. Apply damp-proofing to below-grade exterior faces
11. Install footing drain + drainage rock if site warrants
12. Backfill in 6-8 in lifts with compaction
13. Frame floor system on top using sill plate and anchor bolts

When Stem Walls Are the Wrong Choice

Choose a different foundation type when:

• Site is perfectly flat in a mild climate (no frost) — monolithic slab is cheaper and adequate
• Need habitable space below grade — full basement is the right choice
• Site is steeply sloped — stepped footings or pier-and-beam may be more cost-effective than tall stepped stem walls
• Soil is poor (clay, organic, fill) — engineered foundation alternatives (helical piers, ICF below grade) may be required

For ICF (insulated concrete form) construction as an alternative to traditional poured stem walls, see the ICF walls guide. For full basement construction, see the basement wall waterproofing guide.
